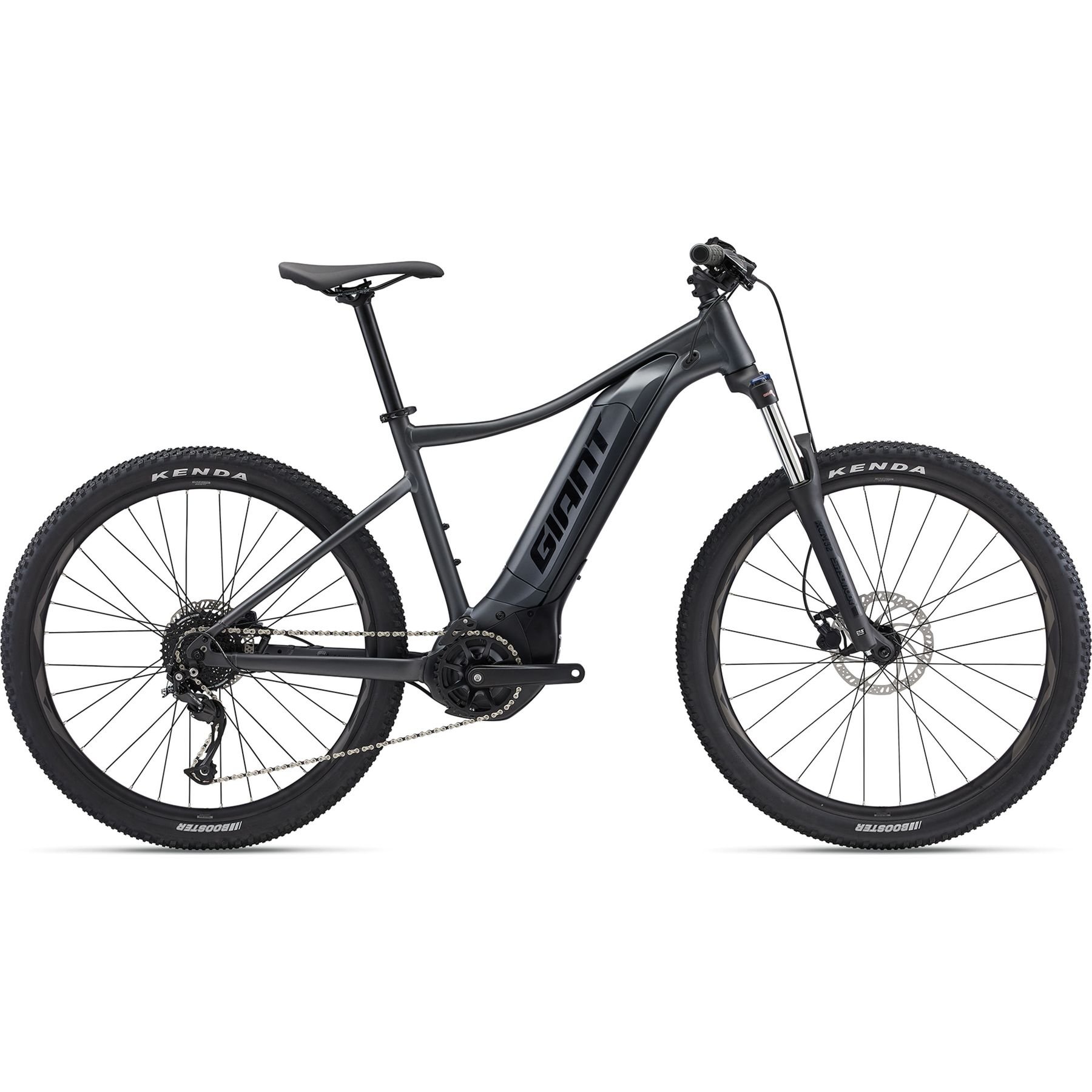

About Product

The trail is calling, and here’s your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.

Features

• The SyncDrive Core motor technology delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.
• Balanced, confident handling: Lightweight aluminium frame with trail-friendly geometry, 100mm of front suspension travel, and fast rolling 27.5-inch or stable 29-inch wheels with tubeless tyre compatibility, puts you in control on off-road terrain.
• Long-lasting battery: Side Release EnergyPak with 500Wh of capacity is easy to charge with our 4A smart charger.

Specifications

• Motor: SyncDrive Sport, 70Nm, Powered by Yamaha
• Controller: RideControl One
• Battery: EnergyPak 500Wh
• Charger: EnergyPak 4A fast charger
• Sizes: S, M, L, XL
• Colours: Matt Graphite
• Frame: ALUXX aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
• Fork: SR Suntour XCM NLO DS lockout coil 120mm travel, Tapered 1½ - 1?" steerer
• Handlebar: Giant Connect TR Riser 31.8x690~750mm
• Grips: Giant Sole-O Grip
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Giant Sport
• Pedals: Aluminum Platform
• Shifters: Shimano Altus 1x9 speed
• Rear Derailleur: Shimano Alivio
• Brakes: Tektro HD-M275, hydraulic disc, 160/180mm
• Brake Levers: Tektro HD-M275
• Cassette: Shimano CS-HG200, 11-36T, 9-speed
• Chain: KMC e.9 Sport, e-bike optimized
• Crankset: Forged Alloy minimal Q-factor, 36T steel direct mount ring
• Bottom Bracket: N/A
• Rims: Giant AM 27.5, Tubeless ready, 30mm inner width
• Hubs: Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
• Spokes: Stainless steel
• Tyres: Kenda Booster 27.5x2.2", wire bead
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry
