About Product

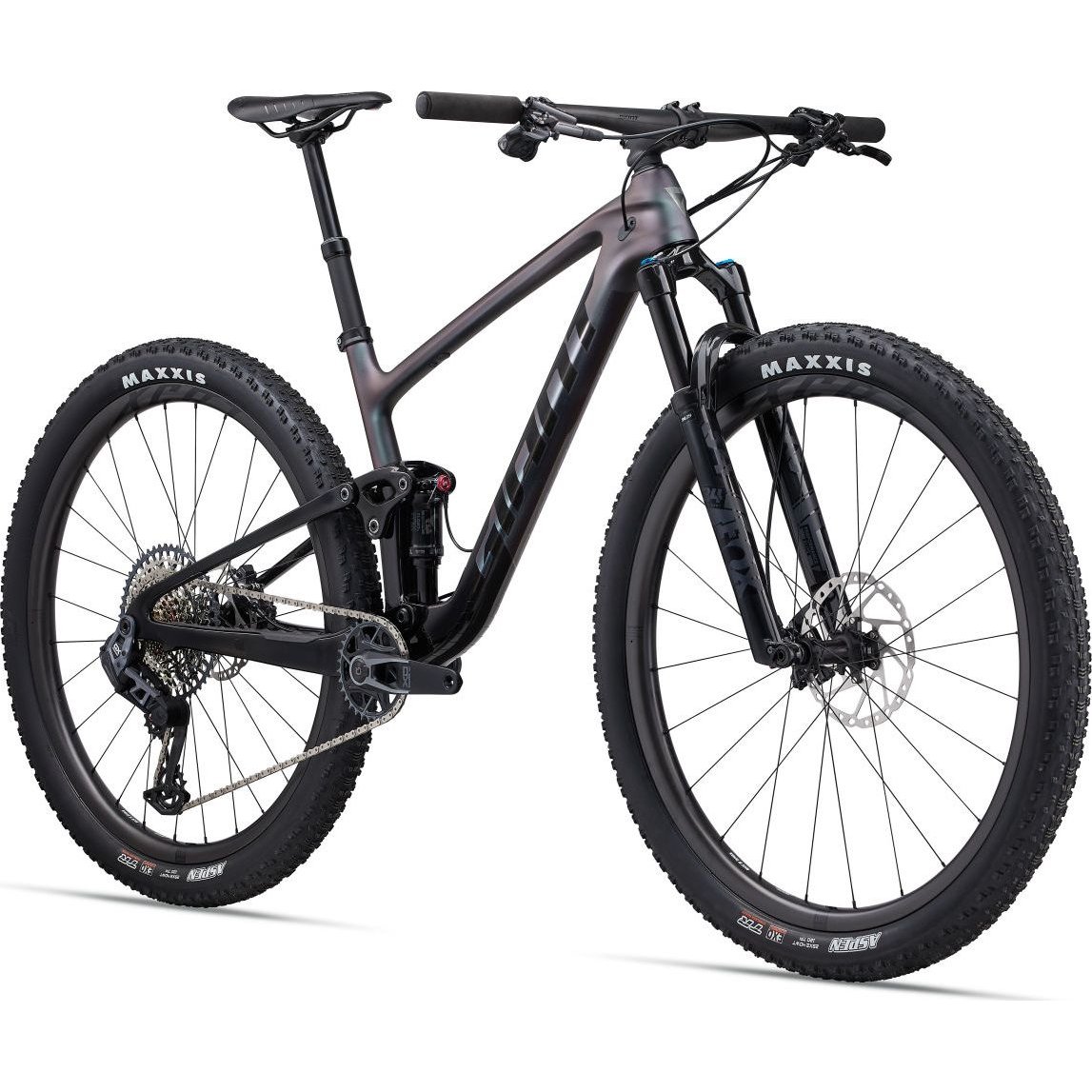

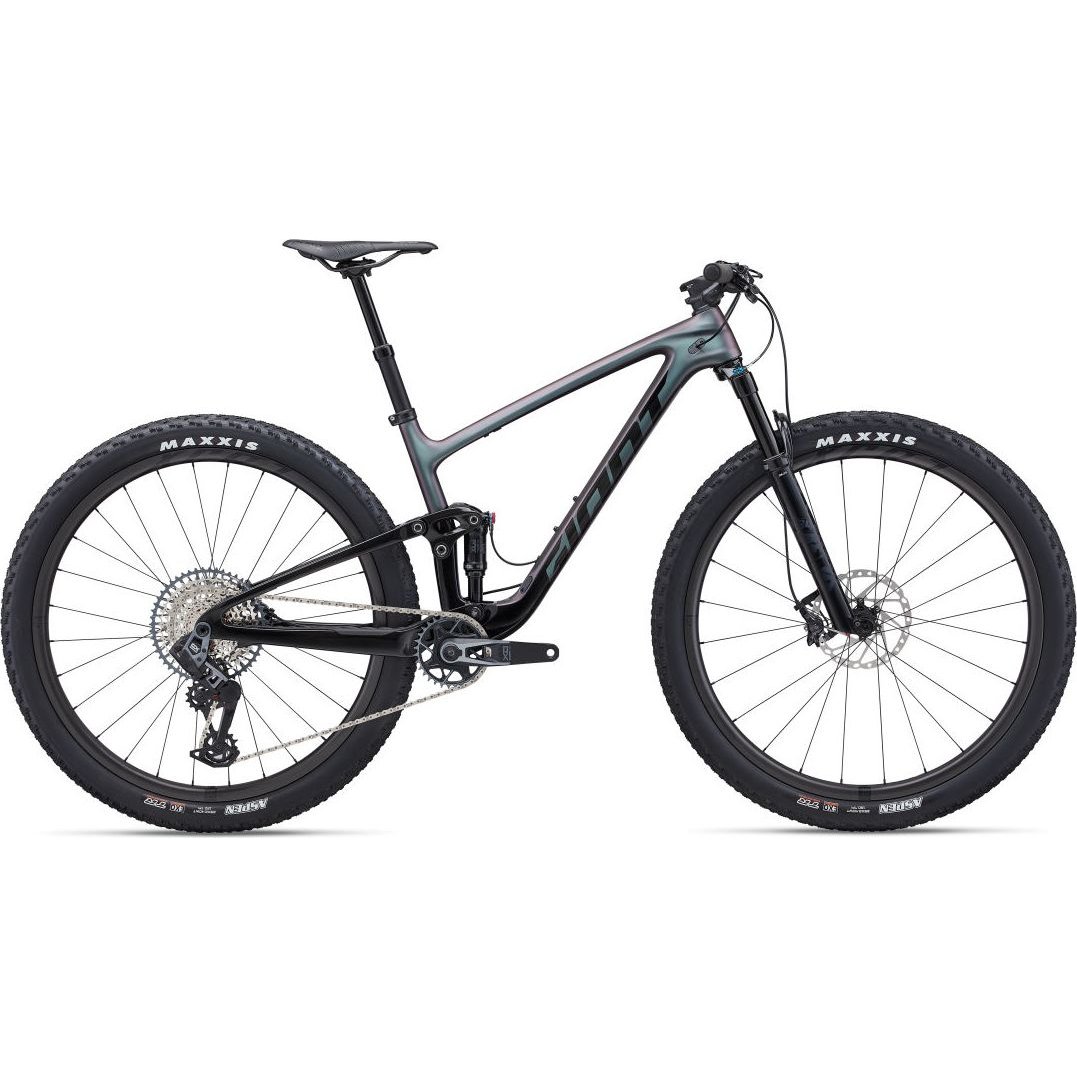

Built for modern XC racing, this full-composite flyer tackles steep singletrack climbs and technical descents with speed and control. With FlexPoint Pro rear suspension and race-ready geometry, it puts you at the front of the pack.

Features

• Ultra-efficient: Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.
• Superior control: FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
• 29er stability and speed: Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longerreach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.

Specifications

• Sizes: S, M, L, XL
• Colours: Gloss Carbon Smoke/Matte Dark Iridescent
• Frame: Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle
• Fork: Fox 34 Float SC Performance Elite remote, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
• Shock: Fox Float SL Performance Elite, three-position remote, 165/45, custom tuned for Giant
• Handlebar: Giant Contact SLR XC Flat, composite, 760x35mm
• Grips: Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
• Stem: Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm
• Seatpost: Giant Contact Switch Adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 110-140mm travel / 30.9 x 395mm XL: 110-140mm travel / 30.9 x 395mm
• Saddle: Fi'zi:k Antares R5 with K:ium rails
• Pedals: N/A
• Shifters: SRAM AXS Pod, discrete clamp, 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM GX Eagle Transmission
• Brakes: Shimano Deore XT BR-M8100, hydraulic, Shimano RT-64 rotors [F]180mm, [R]160mm
• Brake Levers: Shimano Deore XT BL-M8100
• Cassette: SRAM GX Eagle Transmission, 10x52
• Chain: SRAM GX Eagle Transmission
• Crankset: SRAM XO Eagle Transmission with power meter, 32t, 55mm chainline S:170mm, M:175mm, L:175mm, XL:175mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant XCR 1 30 Carbon WheelSystem, 30mm inner width
• Hubs: [F] Giant XC alloy, CenterLock, [R] Giant XC alloy, DT350 54t ratchet driver, CenterLock
• Spokes: Sapim Laser
• Tyres: Maxxis Aspen 29x2.4, foldable, 120tpi, TLR, EXO, tubeless
• Extras: Factory tubeless set up, 2.4" max tyre size, 34t max chainring size, Giant/MRP CS chain guide
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
