About Product

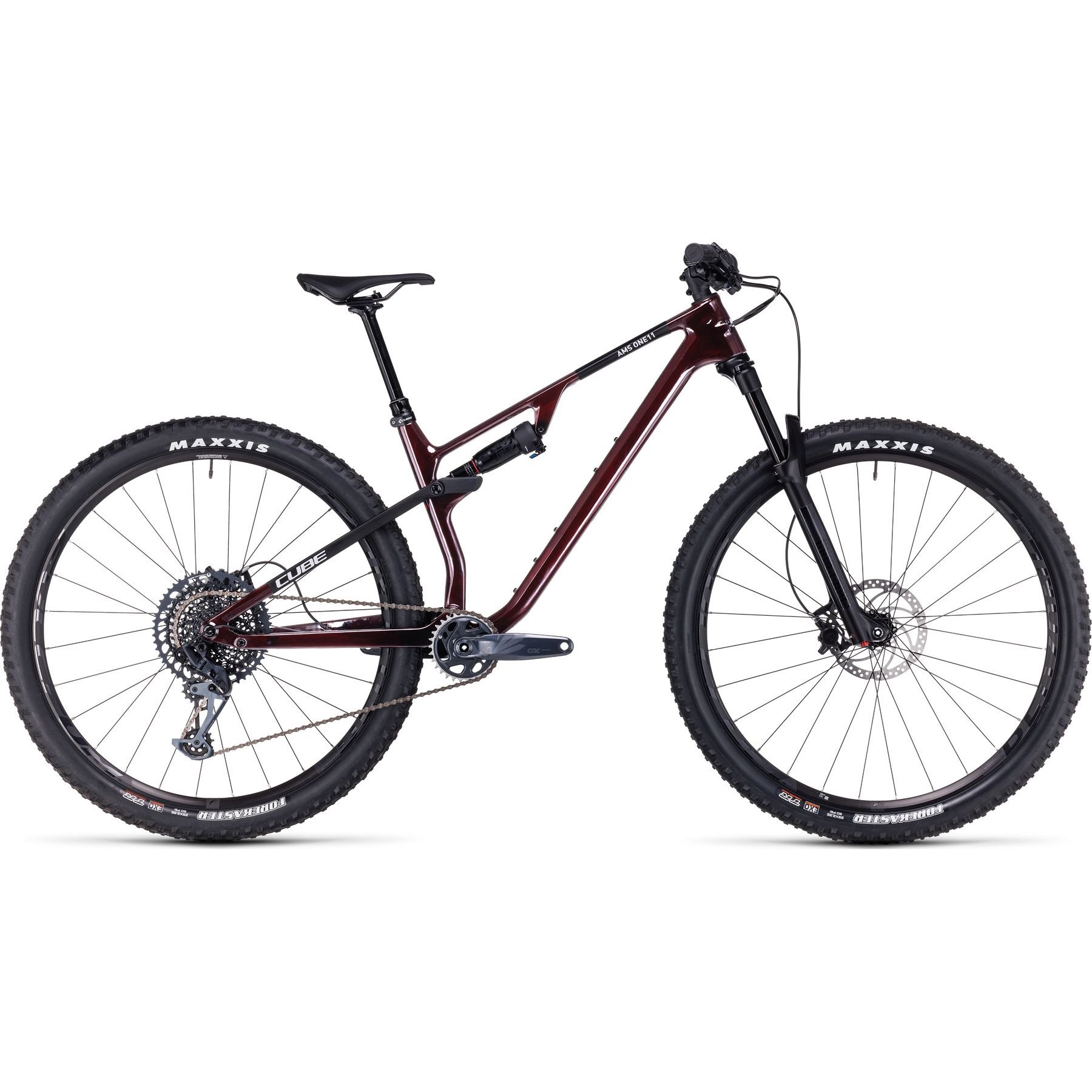

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up.

Features

•  With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g.
• Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

Specifications

• FRAME: C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
• SIZE: 29: S, M, L, XL
• SUSPENSION FORK: RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm
• SHOCK: RockShox Deluxe Select+, 190x42.5mm
• SHOCK HARDWARE: Front: 26x8mm, Rear: 30x8mm
• BRAKE SYSTEM: Magura MT Thirty, Front/Rear 2-Piston, Hydr. Disc Brake (180/180)
• REAR DERAILLEUR: Sram GX Eagle™, 12-Speed
• SHIFTERS: Sram GX Eagle™ Trigger
• BOTTOM BRACKET: Sram DUB MTB, 92mm Pressfit
• CRANKSET: Sram GX Eagle™ Boost DUB, 30T
• CASSETTE: Sram XG-1275 Eagle™, 10-52T
• CHAIN: Sram SX Eagle™
• HANDLEBAR: Newmen Evolution 318.20, 760mm
• STEM: Newmen Evolution SL 318.4, 31.8mm
• GRIPS: SDG Thrice
• HEADSET: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
• WHEELSET: Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• TYRES: Maxxis Forekaster, EXO, Tubeless Ready, 2.35
• SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
• SADDLE: Natural Fit Nuance
• WEIGHT: 12,5 kg

Geometry
