About Product

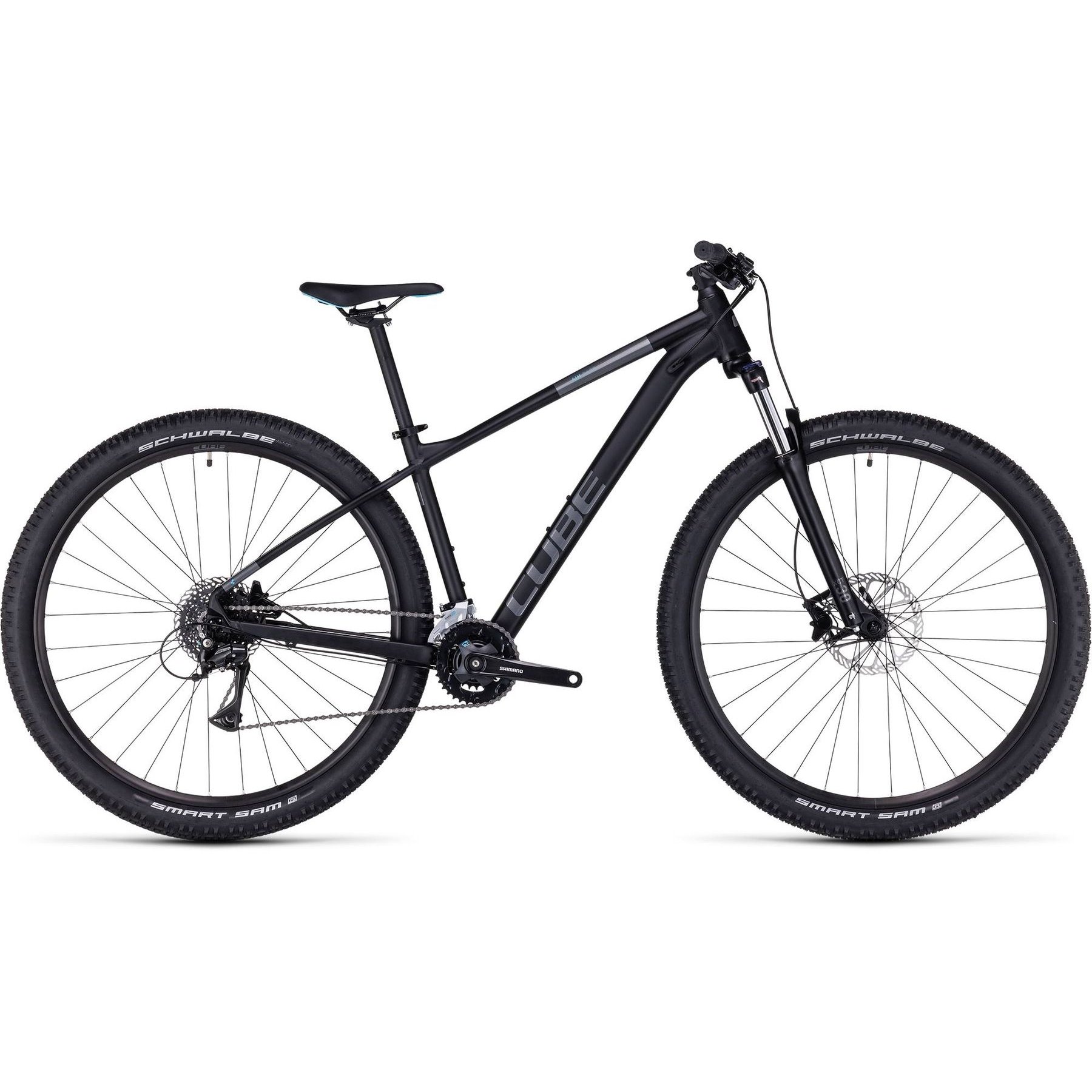

The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout – so you can reduce bob and bounce when you're riding hard.

With grippy tyres, powerful hydraulic disc brakes and the wide range of Shimano's 2x8 gears, you've all you need to build your own adventure. And, with SizeSplit, there's an Aim Race that'll fit you perfectly.

Features

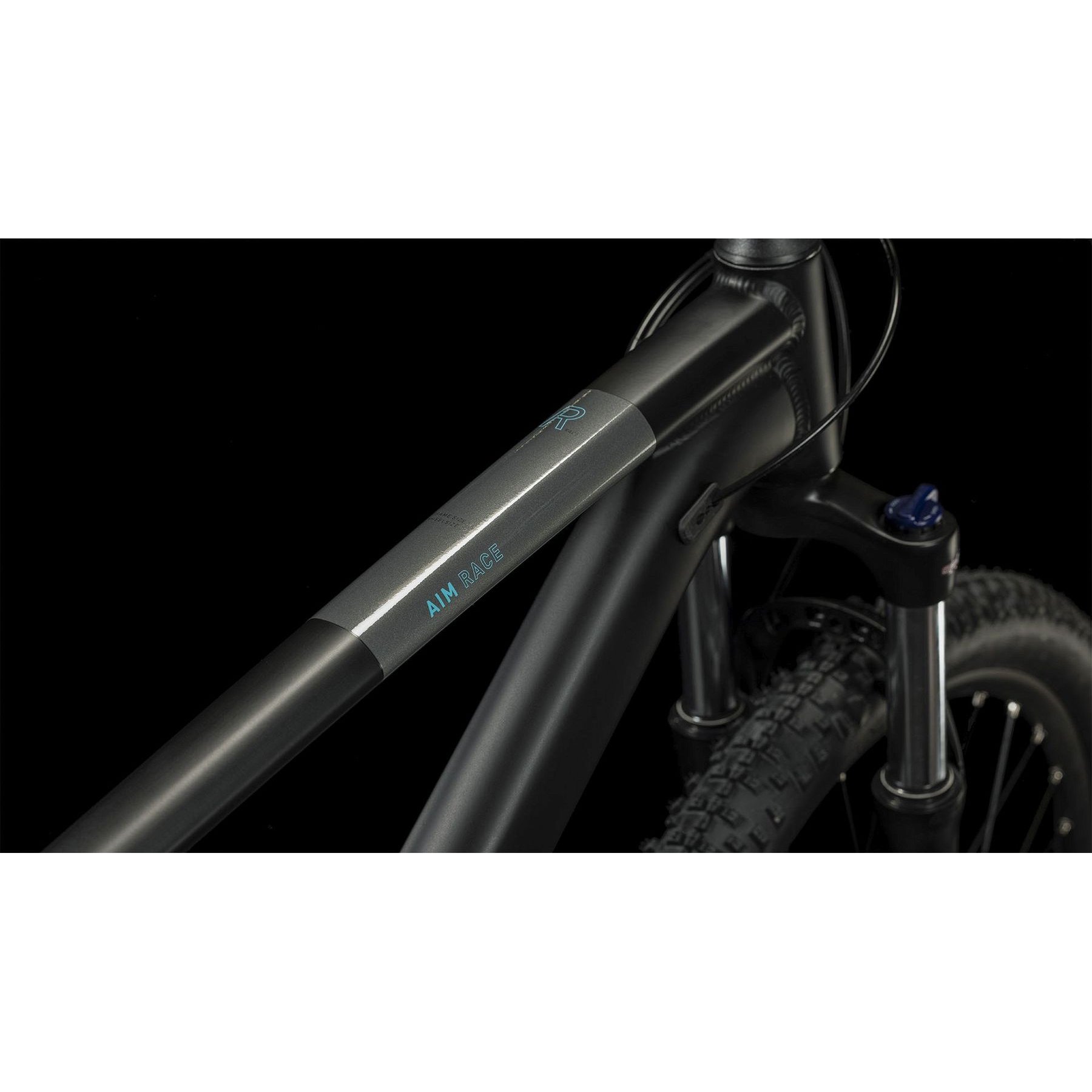

• Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.

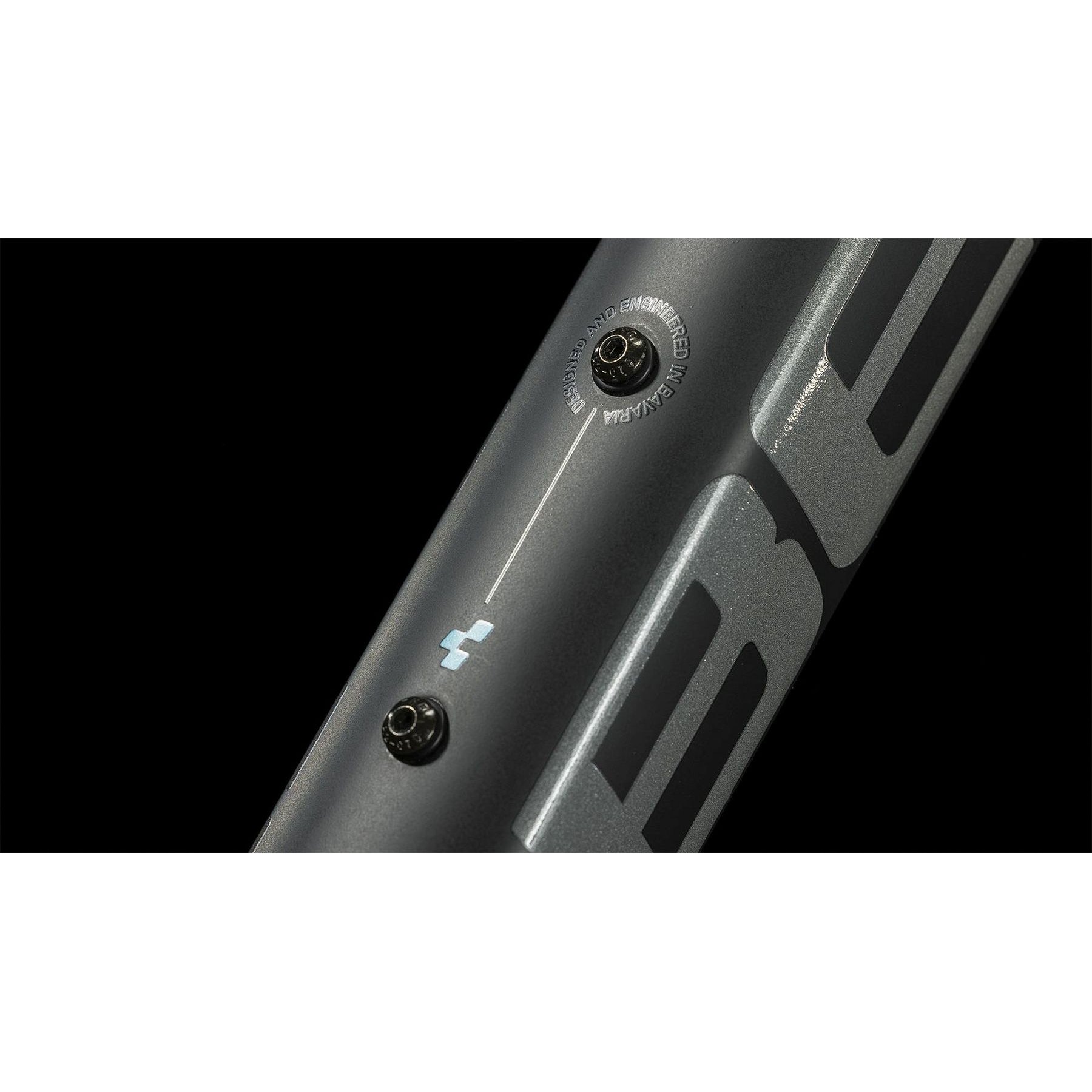

• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specifications

• Net weight (kg): 14,3

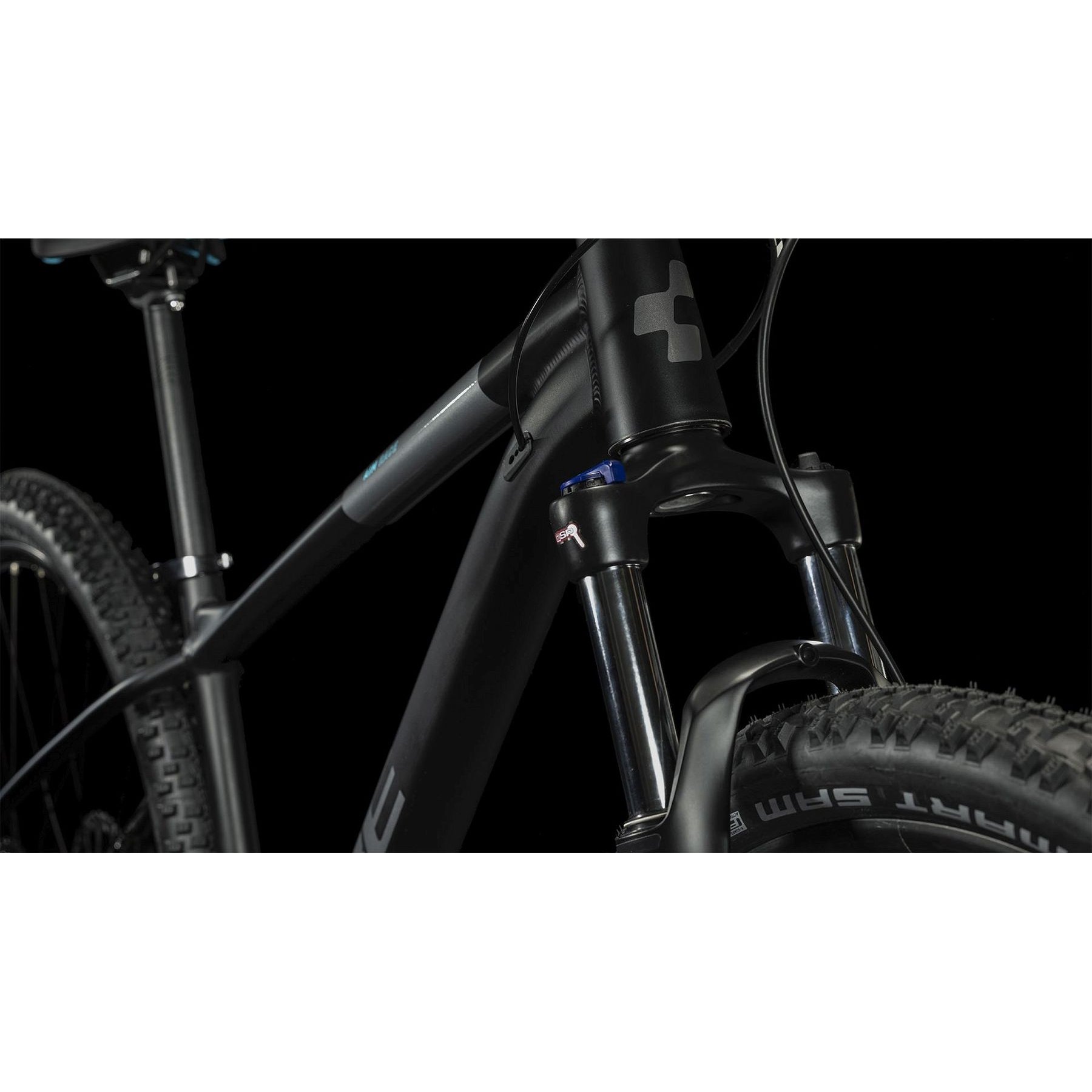

• Fork: SR Suntour XCT Disc, 100mm, Lockout
• Headset: CUBE FPH868, Semi-Integrated
• Stem: CUBE Peformance Stem Race, 31.8mm
• Handlebar: CUBE Rise Trail Bar, 680mm
• Grips: ACID React
• Rear derailleur: Shimano RD-M3020, 8-Speed
• Front derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
• Shifters: Shimano SL-M315, Rapidfire-Plus
• Brake system: Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
• Crankset: Shimano FC-M315, 36x22T, 170mm
• Crankset chainring sizes: 36x22T
• Cassette: Shimano CS-HG31, 11-34T
• Number of gears: 16
• Chain: KMC Z8.3
• Rims: CUBE ZX20, 32H, Disc
• Front hub: Shimano HB-TX505, QR, Centerlock
• Rear hub: Shimano FH-TX505, QR, Centerlock
• Tires: Schwalbe Smart Sam, Active, 2.25
• Pedals: ACID PP MTB

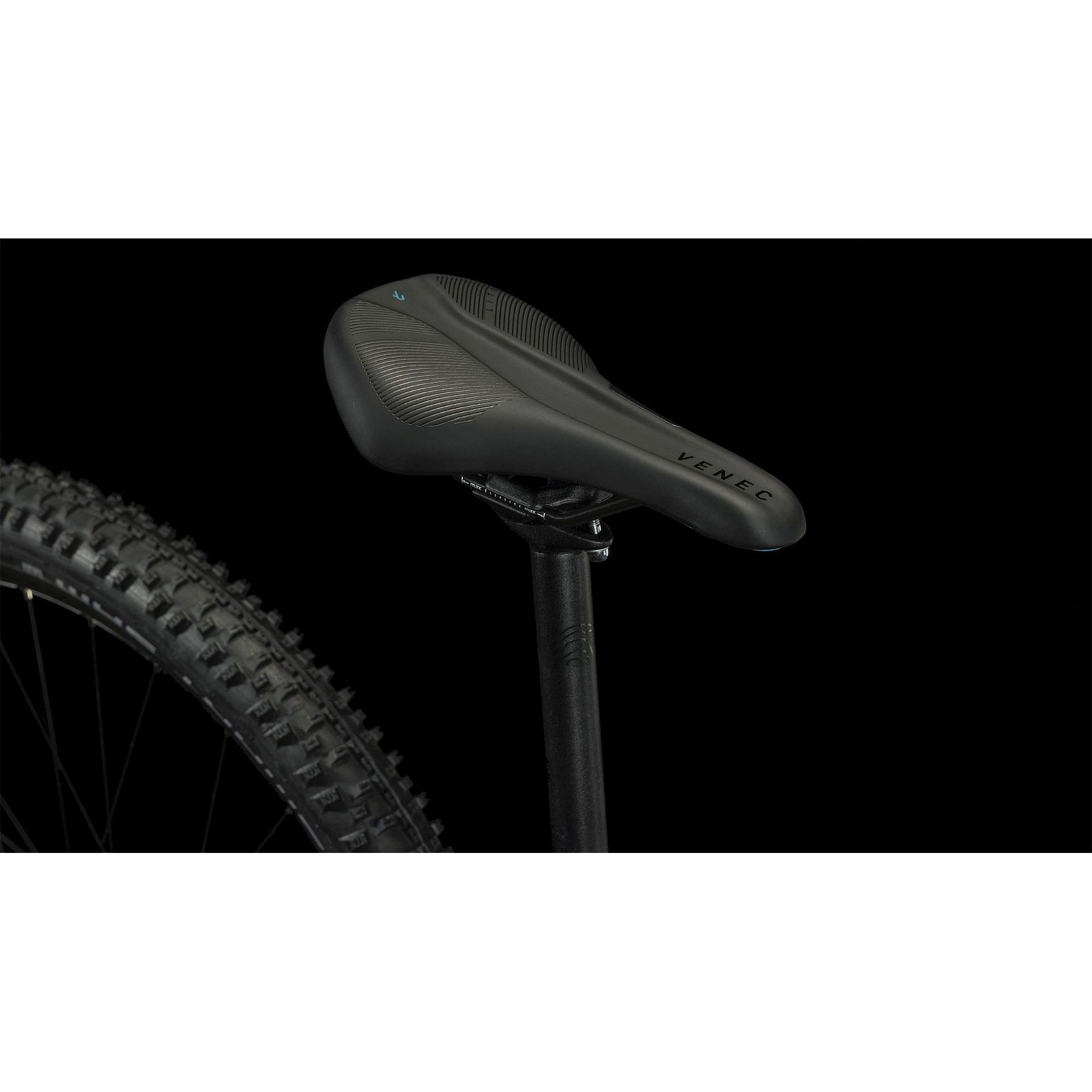

• Saddle: Natural Fit Venec Lite
• Seat post: CUBE Performance Post, 27.2mm
• Seat post = dropper Yes/No: No

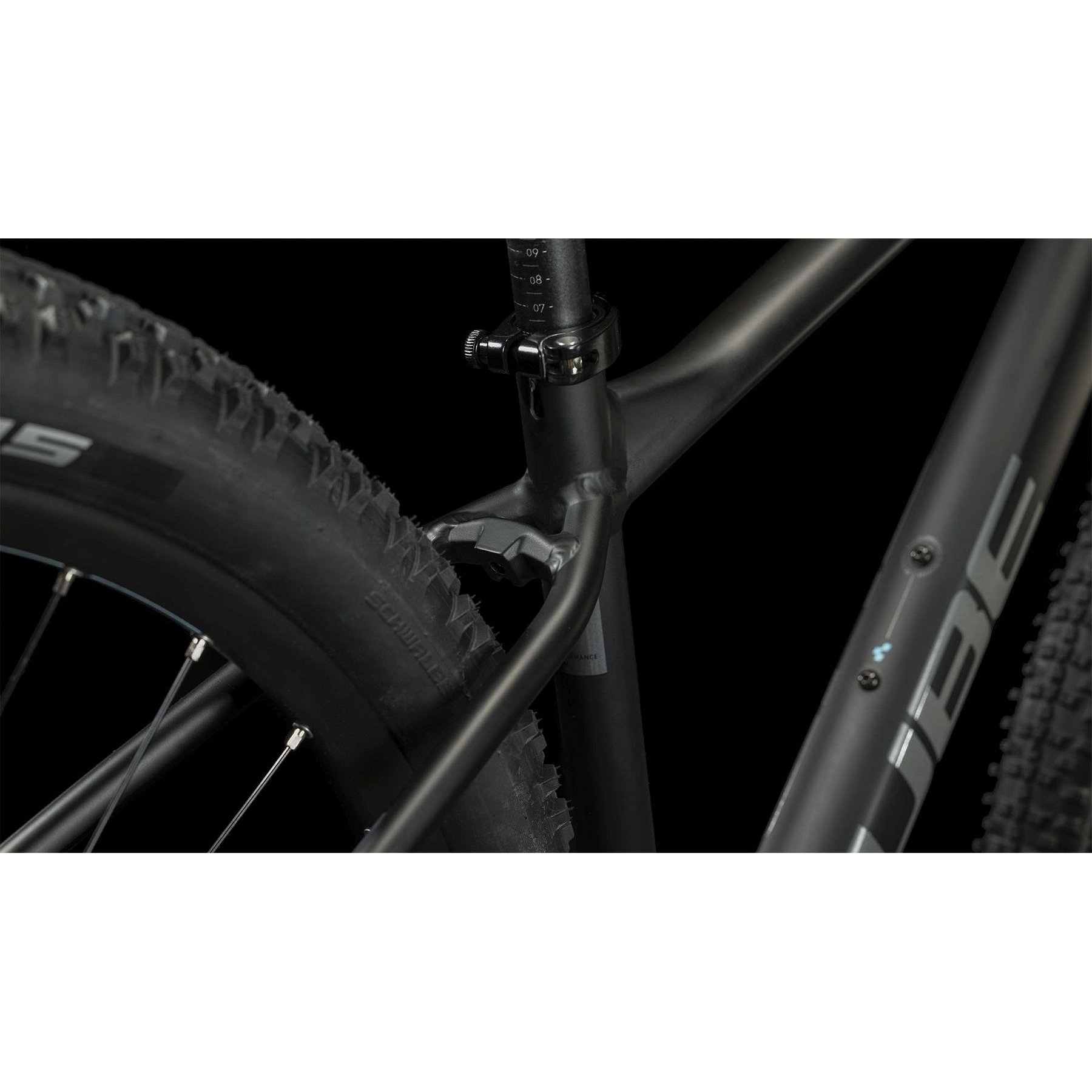

• Seat post clamp: CUBE Varioclose, 31.8mm
