About Product

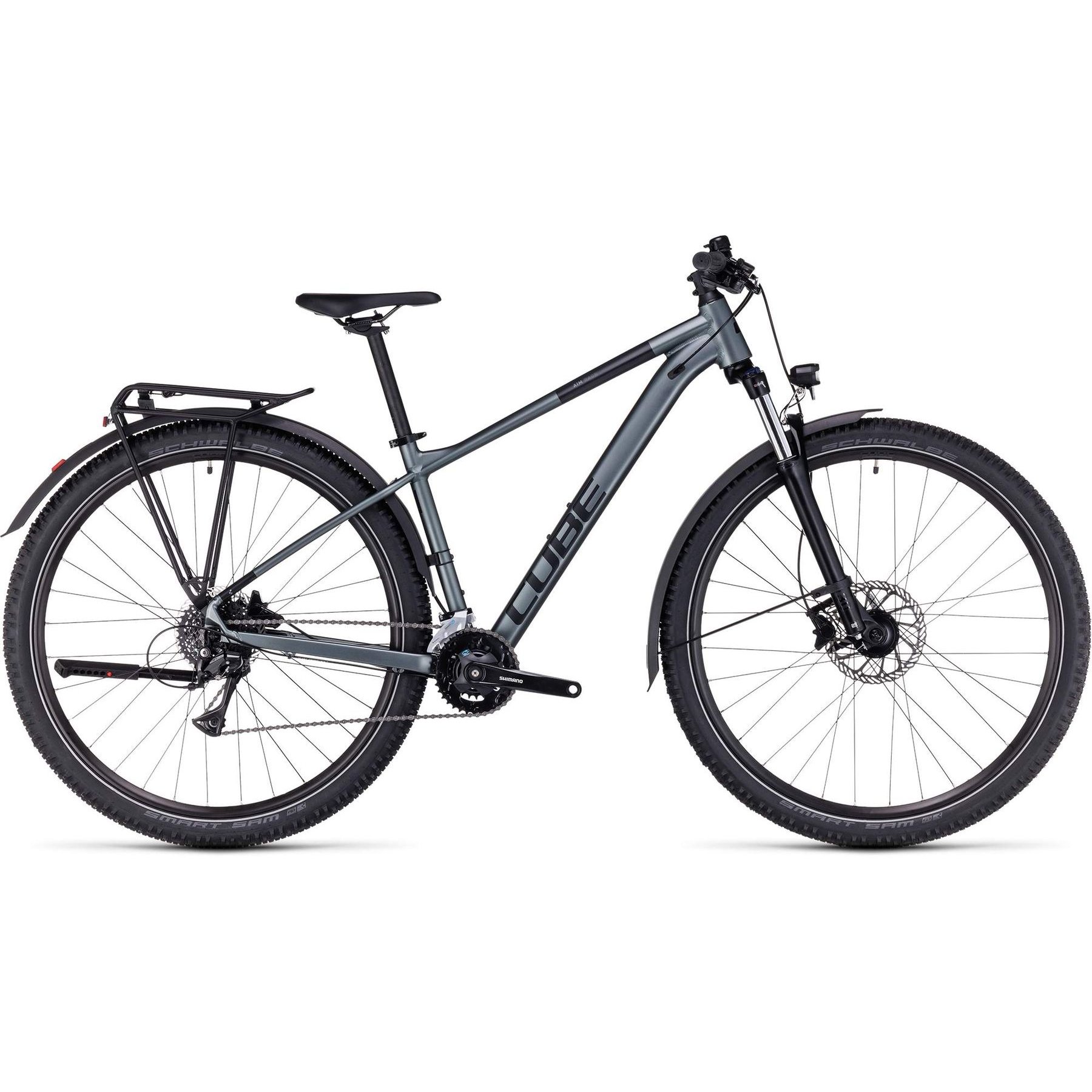

Can one bike really do it all? At CUBE, we think the answer is 'yes' – and you're looking at it. Fully kitted out with mudguards, a lighting system, luggage carrier and kickstand, the Aim Race Allroad is ready to get you to work or haul your shopping across town.

And, with its lockout-equipped 100mm suspension fork and hydraulic disc brakes, it's just as ready to take on weekend off-road adventures. Add grippy, comfortable tyres and wide-ranging gears and you're all set for pretty much anything.

Features

• With the Aim Allroad we're redefining versatility.
• The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box.
• There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, and the flat disc mount integrates seamlessly with the included kickstand.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim Allroad that fits perfectly.

Specifications

• Net weight (kg): 16,5
• Fork: SR Suntour XCM Disc, 100mm, Lockout
• Headset: CUBE FPH868, Semi-Integrated
• Stem: CUBE Performance Stem Race, 31.8mm
• Handlebar: CUBE Rise Trail Bar, 680mm
• Grips: ACID React
• Rear derailleur: Shimano RD-M3020, 8-Speed
• Front derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
• Shifters: Shimano SL-M315, Rapidfire-Plus
• Brake system: Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
• Crankset: Shimano FC-M315, 36x22T, 170mm
• Crankset chainring sizes: 36x22T
• Cassette: Shimano CS-HG31, 11-34T
• Number of gears: 16
• Chain: KMC Z8.3
• Rims: CUBE ZX20, 32H, Disc
• Front hub: Shimano DH-3D32, Hub Dynamo, QR
• Rear hub: Shimano HB-TX506, QR, 6-Bolt
• Tires: Schwalbe Smart Sam, Active, 2.25
• Pedals: ACID PP MTB
• Saddle: Natural Fit Venec Lite
• Seat post: CUBE Performance Post, 27.2mm
• Seat post = dropper Yes/No: No
• Seat post clamp: CUBE Varioclose, 31.8mm

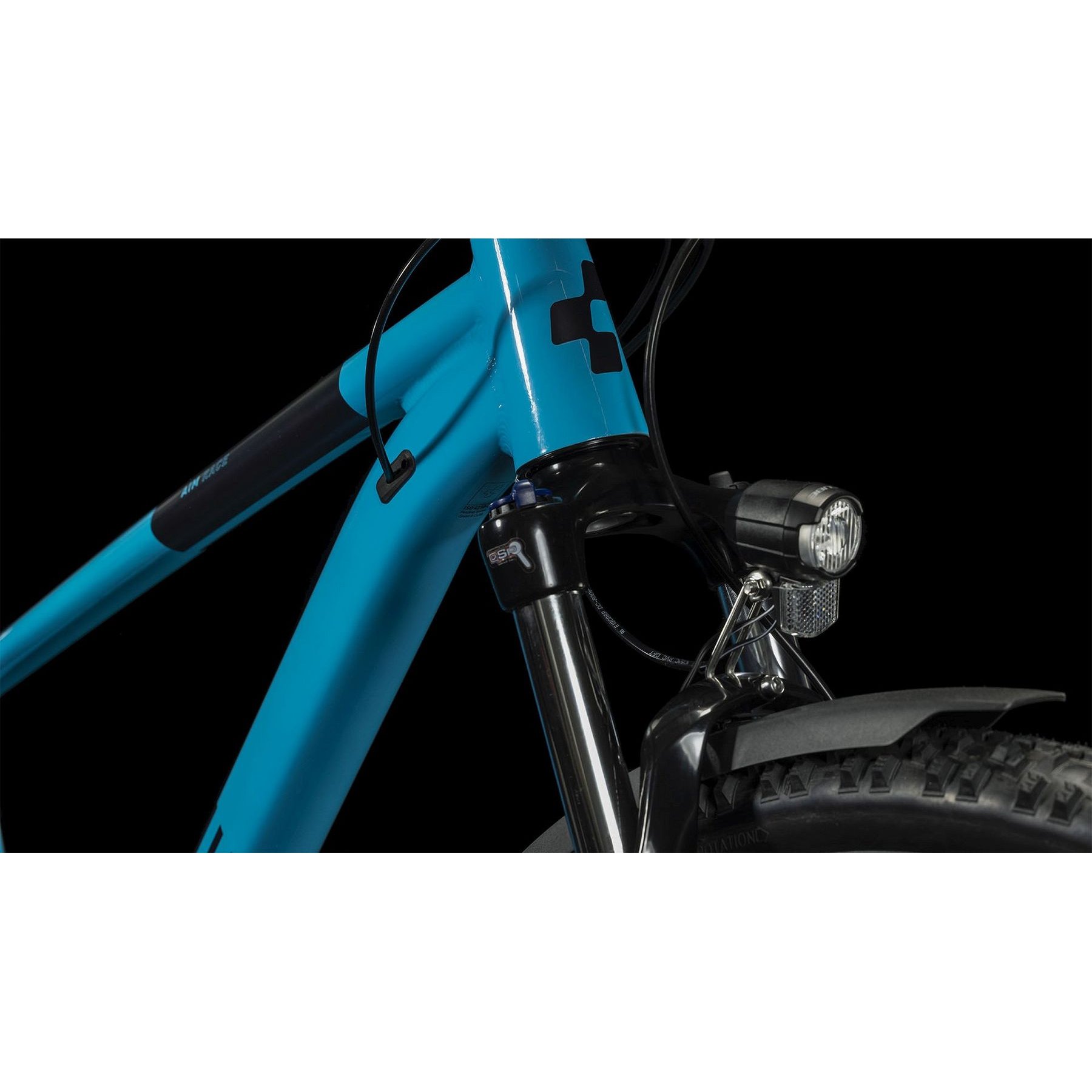

• Front light: CUBE Shiny 50

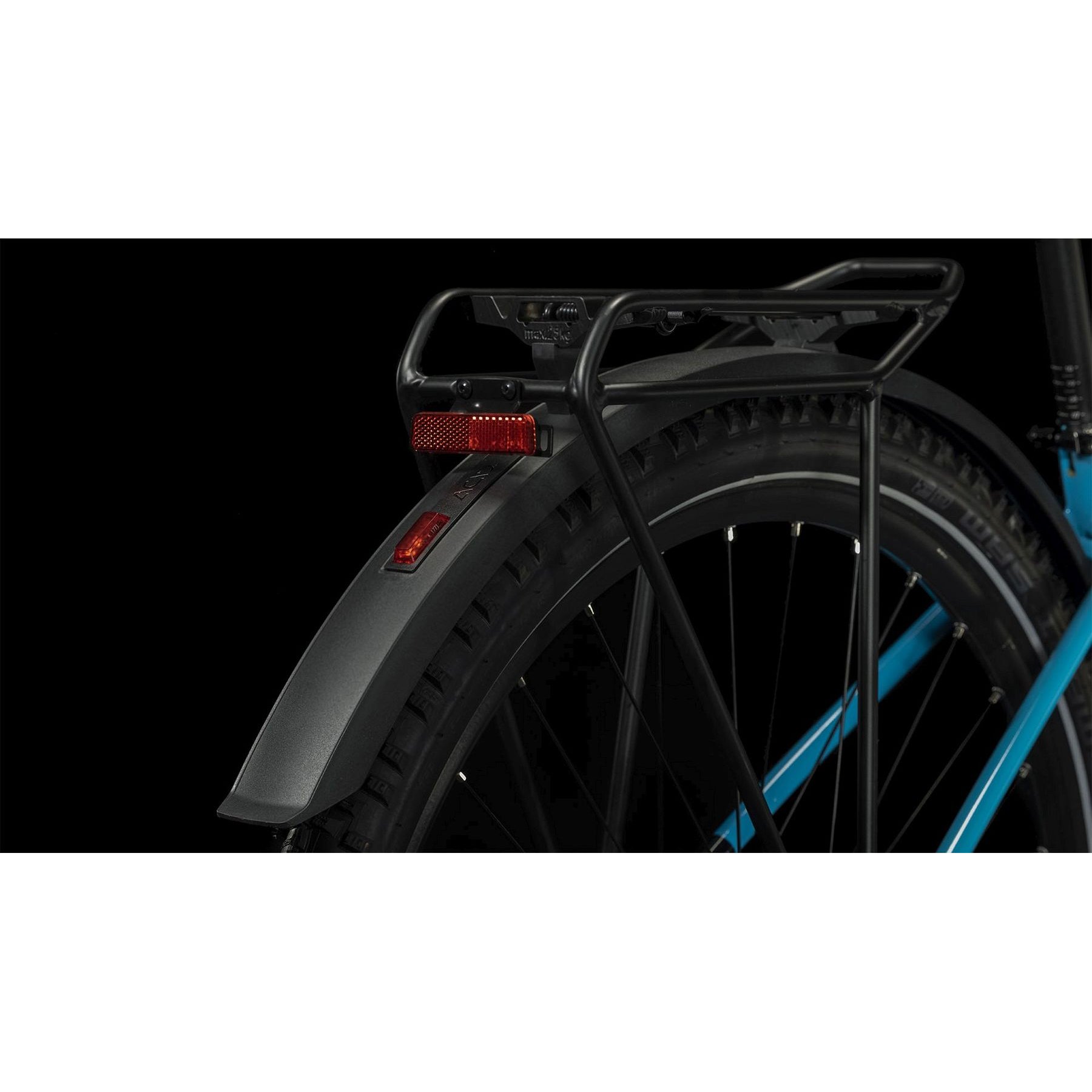

• Rear light: ACID Mudguard Rear Light PRO-D, 6V, AC
• Kickstand: ACID FM Pure Kickstand
• Mudguards: ACID 65
• Bell: Easy Bell
• Carrier: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
