About Product

When the off-road bug bites you'll want a bike that won't let you down. That's why, for the Aim EX, we selected Shimano's easy-to-use and superbly reliable 2x10 gears.

Paired with the bump-swallowing ability of a 100mm suspension fork – with remote lockout – and tenaciously grippy 2.25in tyres, it's your guarantee of always having the right gear for any eventuality at your fingertips. Strong hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?

Features

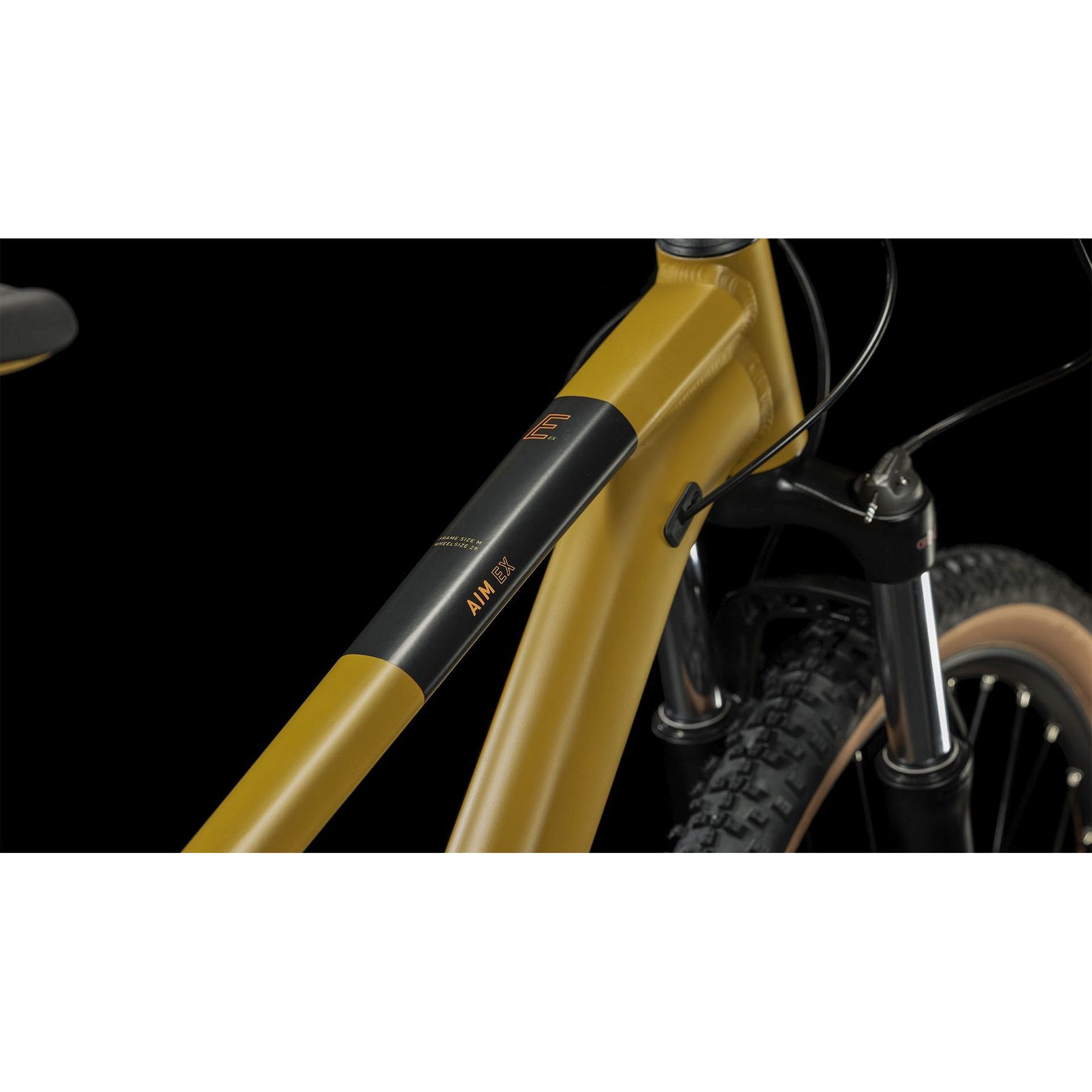

• Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specifications

• Net weight (kg): 14,4

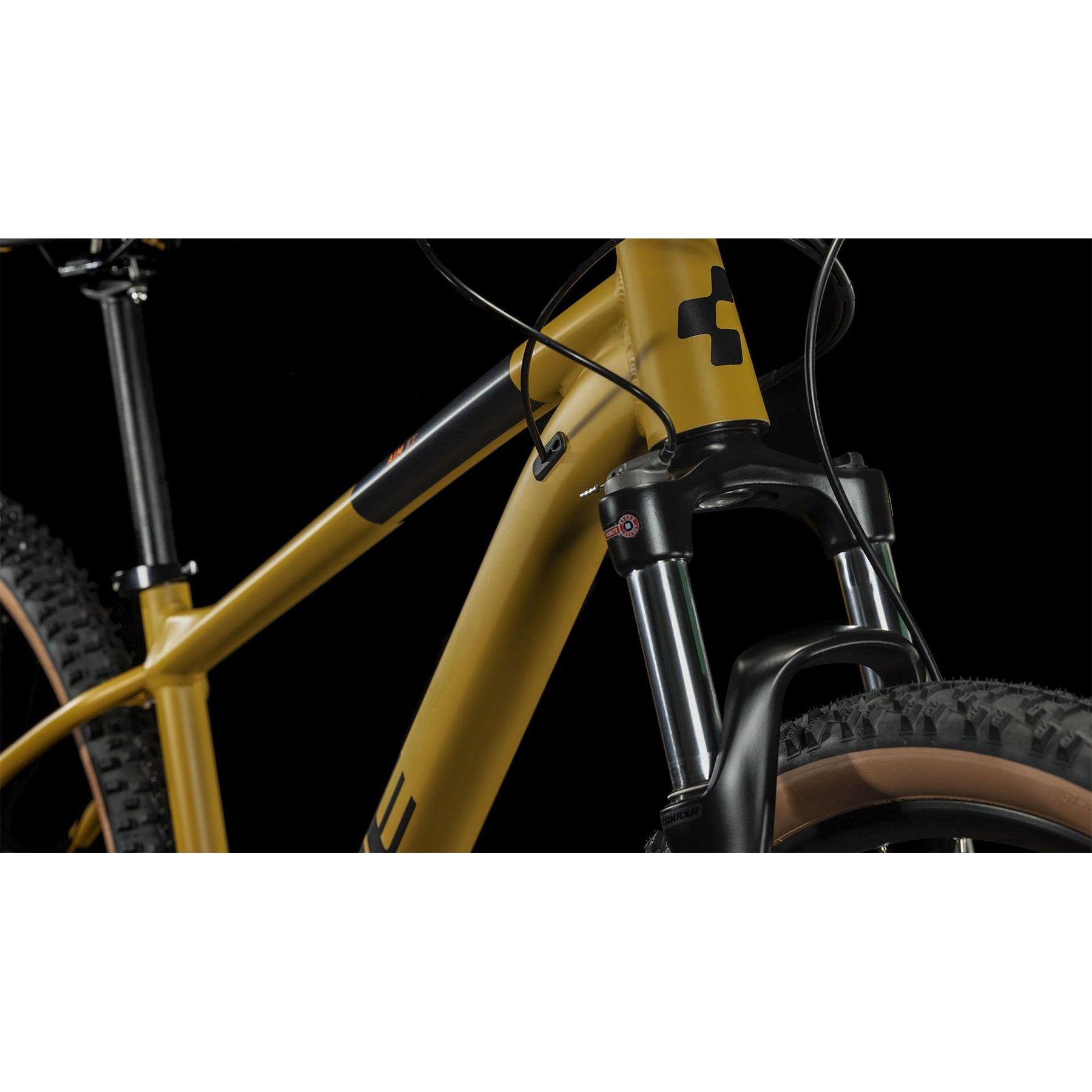

• Fork: SR Suntour XCM Disc, 100mm, Remote Lockout
• Headset: CUBE FPH868, Semi-Integrated
• Stem: CUBE Performance Stem Race, 31.8mm
• Handlebar: CUBE Rise Trail Bar, 680mm
• Grips: ACID React
• Rear derailleur: Shimano Deore RD-M5120-SGS, 10-Speed
• Front derailleur: Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp
• Shifters: Shimano Deore SL-M5100, Rapidfire-Plus
• Brake system: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

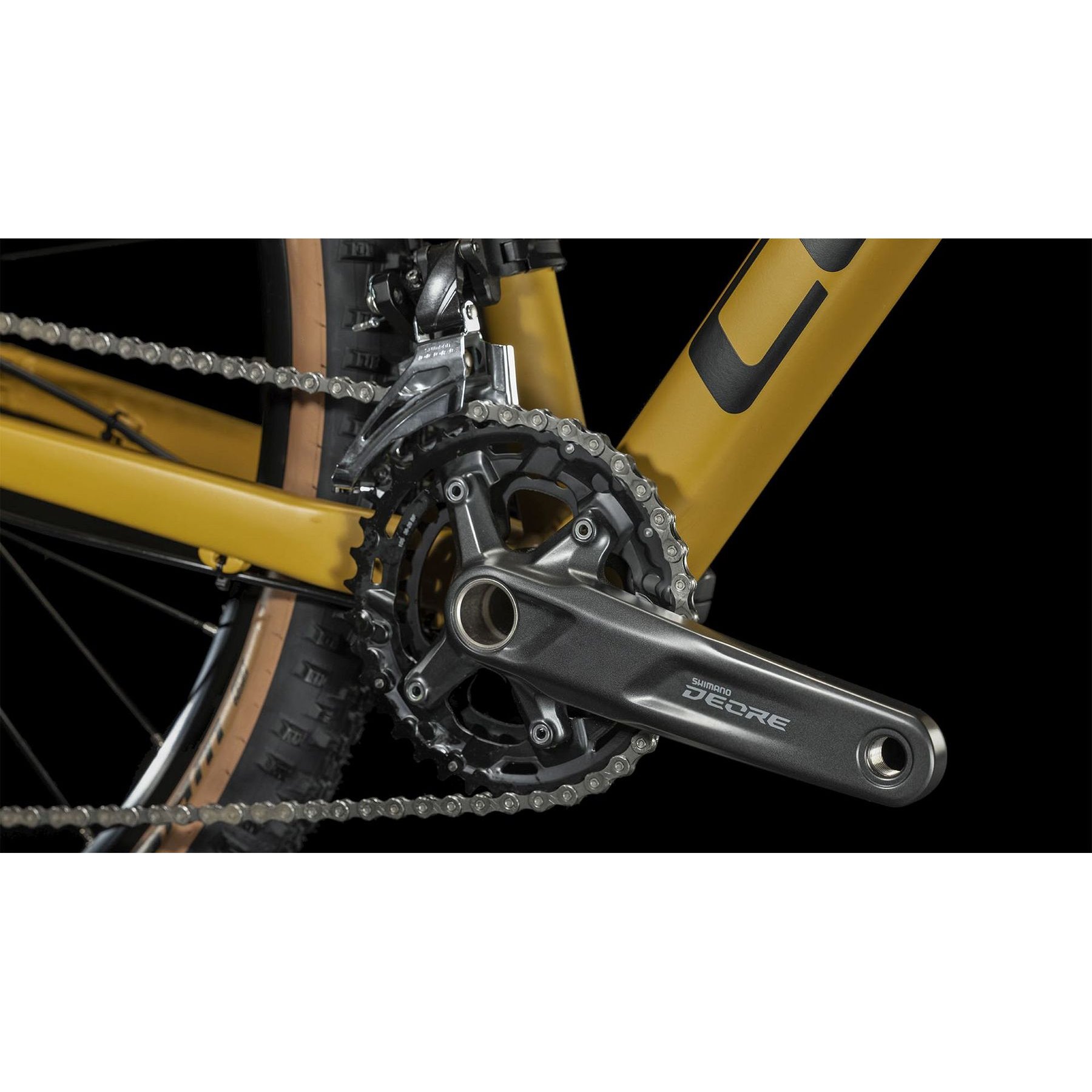

• Crankset: Shimano Deore FC-M4100, 36X26T
• Crankset chainring sizes: 36X26T
• Cassette: Sunrace CSM52, 11-42T
• Number of gears: 20
• Chain: KMC X10
• Rims: CUBE ZX20, 32H, Disc
• Front hub: Shimano HB-TX505, QR, Centerlock
• Rear hub: Shimano FH-TX505, QR, Centerlock
• Tires: Schwalbe Smart Sam, Active, 2.25
• Pedals: ACID PP MTB
• Saddle: Natural Fit Venec Lite
• Seat post: CUBE Performance Post, 27.2mm
• Seat post = dropper Yes/No: No
• Seat post clamp: CUBE Varioclose, 31.8mm
