About Product

If you've got an off-road itch that needs scratching, the new Aim Pro could be the relief you've been looking for. With its grippy 2.25in tyres and 100mm of suspension fork travel, courtesy of Suntour, it's got what you need to keep riding where the road ends. Wide-ranging Shimano 2x8 gears will help you see off the steepest climbs, and strong hydraulic disc brakes put you in control on the descents. SizeSplit makes it easy to find the perfect fit, and the new tapered head tube frame is even ready to accept a dropper post upgrade.

Features

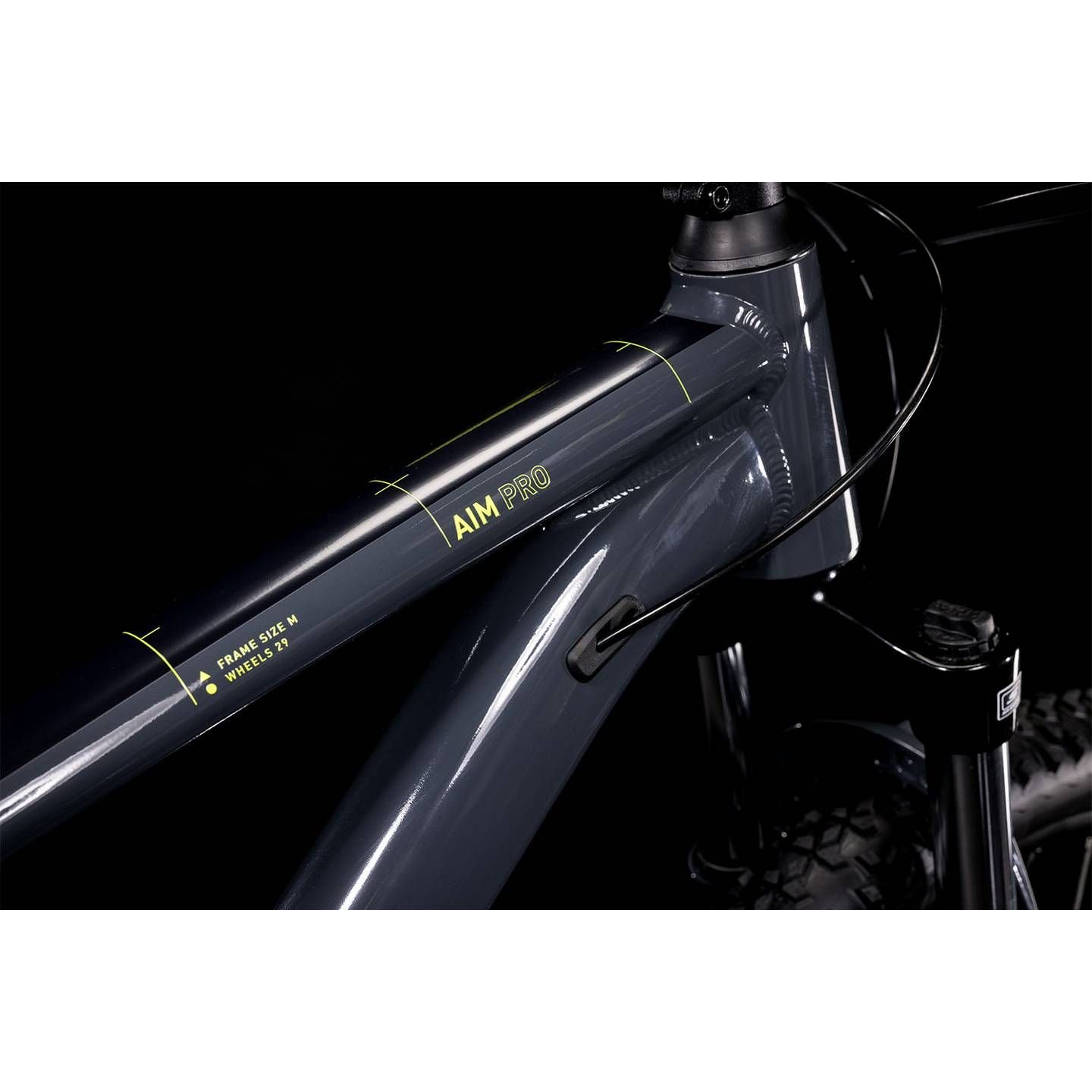

• Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.
• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification

• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• FORK: SR Suntour XCT, 100mm

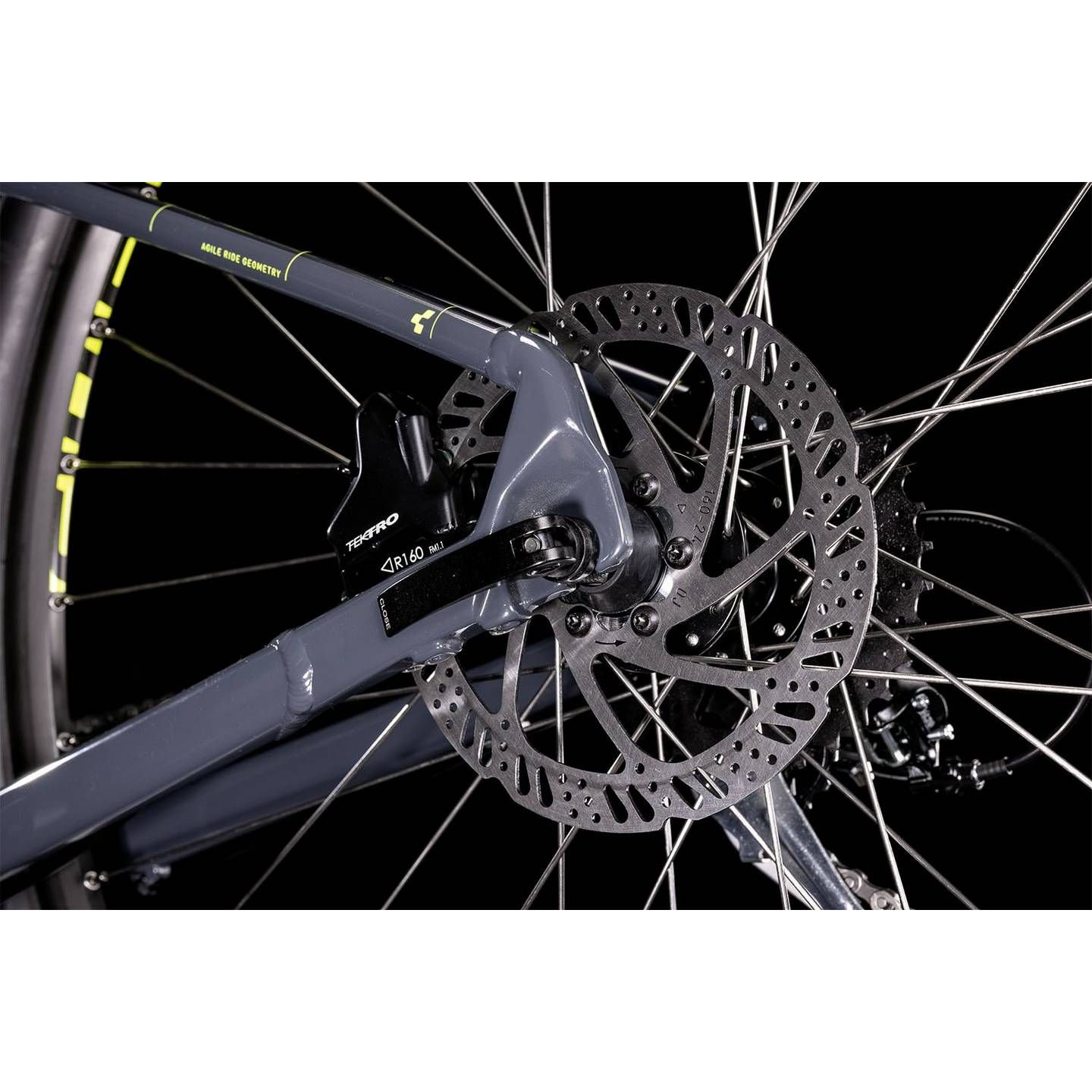

• BRAKE SYSTEM: Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
• REAR DERAILLEUR: Shimano RD-M360, 8-Speed
• FRONT DERAILLEUR: Shimano FD-M315, Top Swing, 31.8mm Clamp
• SHIFTERS: Shimano SL-M315, Rapidfire-Plus
• CRANKSET: Shimano FC-M315, 36x22T
• CASSETTE: Shimano CS-HG31, 11-34T
• CHAIN: KMC Z8.3
• FRONT HUB: CUBE Alloy Light, QR, 6-Bolt
• REAR HUB: CUBE Alloy Light, QR, 6-Bolt
• RIMS: CUBE ZX20, 32H, Disc
• TYRES: CUBE IMPAC Smartpac, 2.25
• STEM: CUBE Performance Stem Pro, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: ACID React
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm

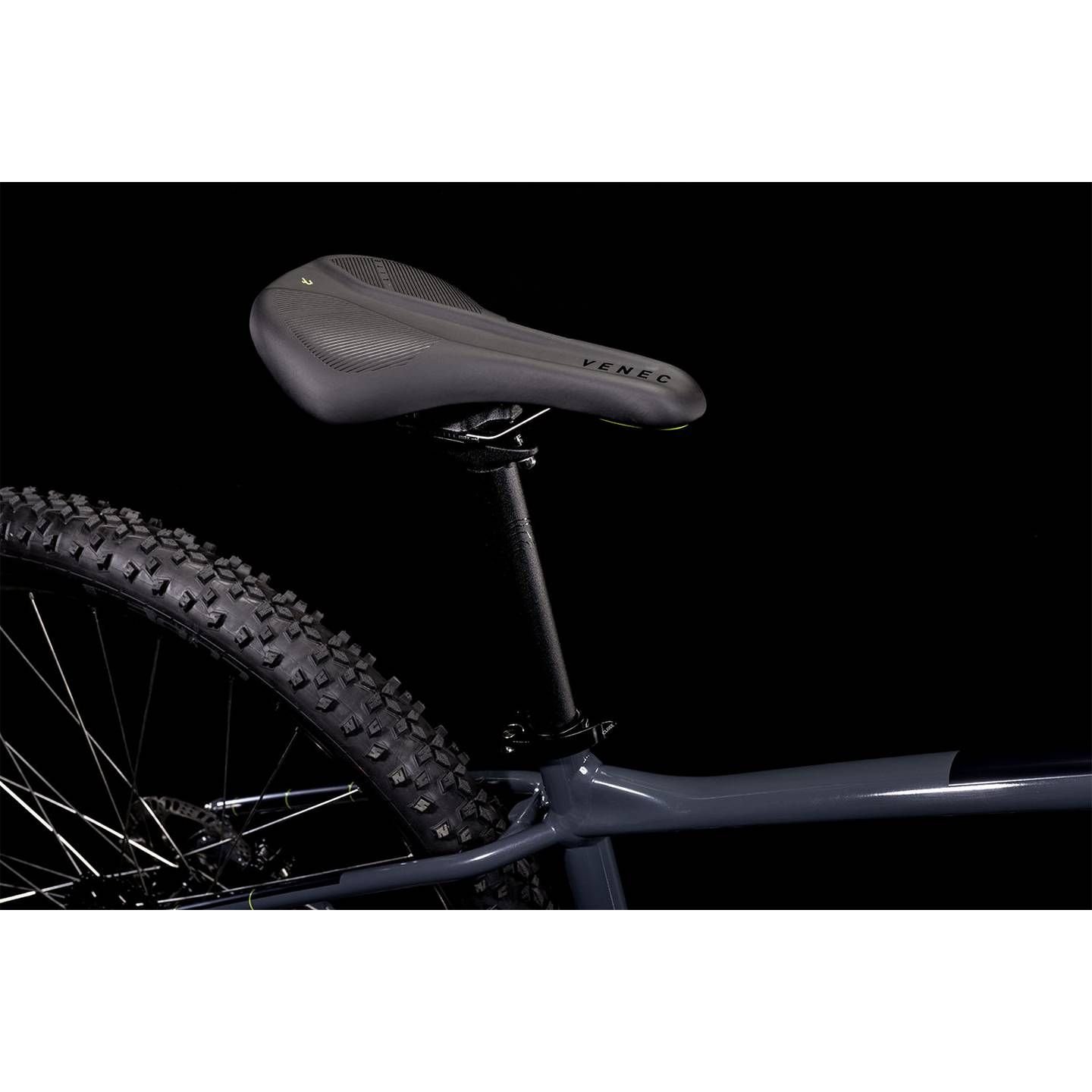

• SADDLE: Natural Fit Venec Lite
• HEADSET: CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
• PEDALS: CUBE PP MTB
• WEIGHT: 14,6 kg
