About Product

When the off-road bug bites, you'll want a bike that won't let you down. That's why, for the brand-new Aim EX, we began with Shimano's superbly reliable, wide-ranging Deore 1x10 gears. Paired with the bump-swallowing ability of Suntour's 100mm XCM fork - with remote lockout - and tenaciously grippy 2.25in tyres, it's your guarantee of always having the right gear for any eventuality at your fingertips. Strong Shimano hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?

Features

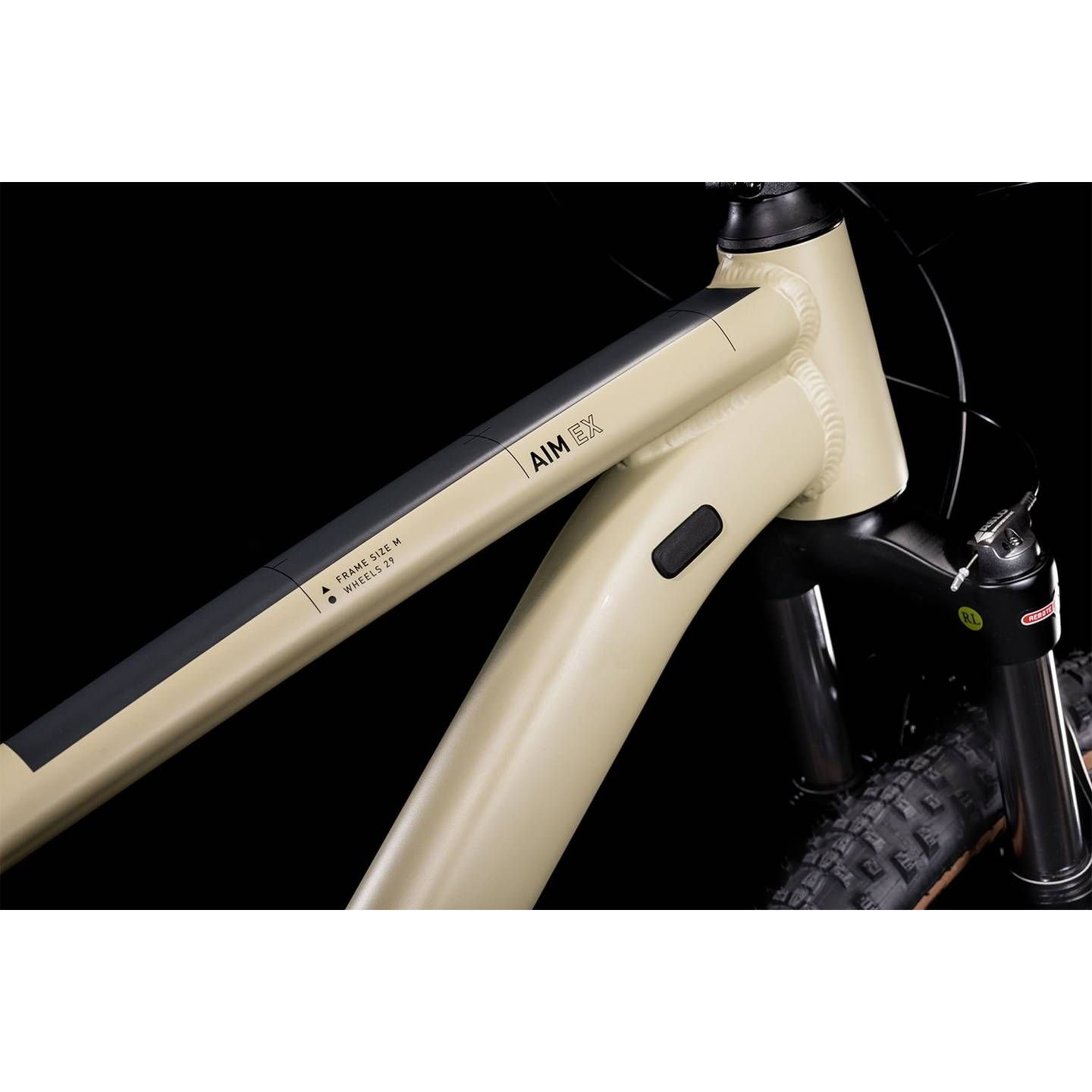

• Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
• It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.

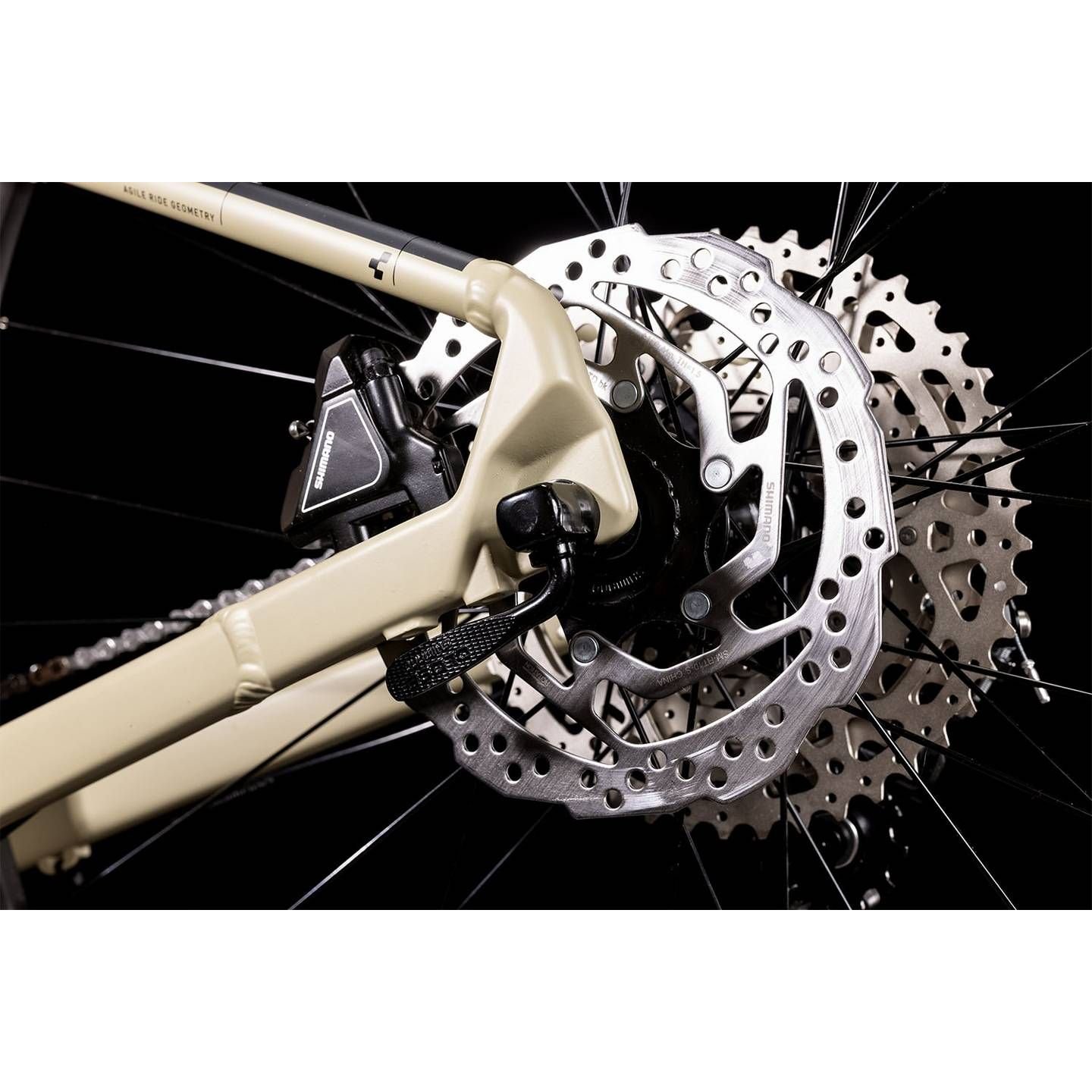

• There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
• Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
• Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification

• SIZE: Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
• FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• FORK: SR Suntour XCM Disc, 100mm, Remote Lockout
• BRAKE SYSTEM: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
• REAR DERAILLEUR: Shimano Deore RD-M5120-SGS, 10-Speed
• SHIFTERS: Shimano Deore SL-M4100, Rapidfire-Plus

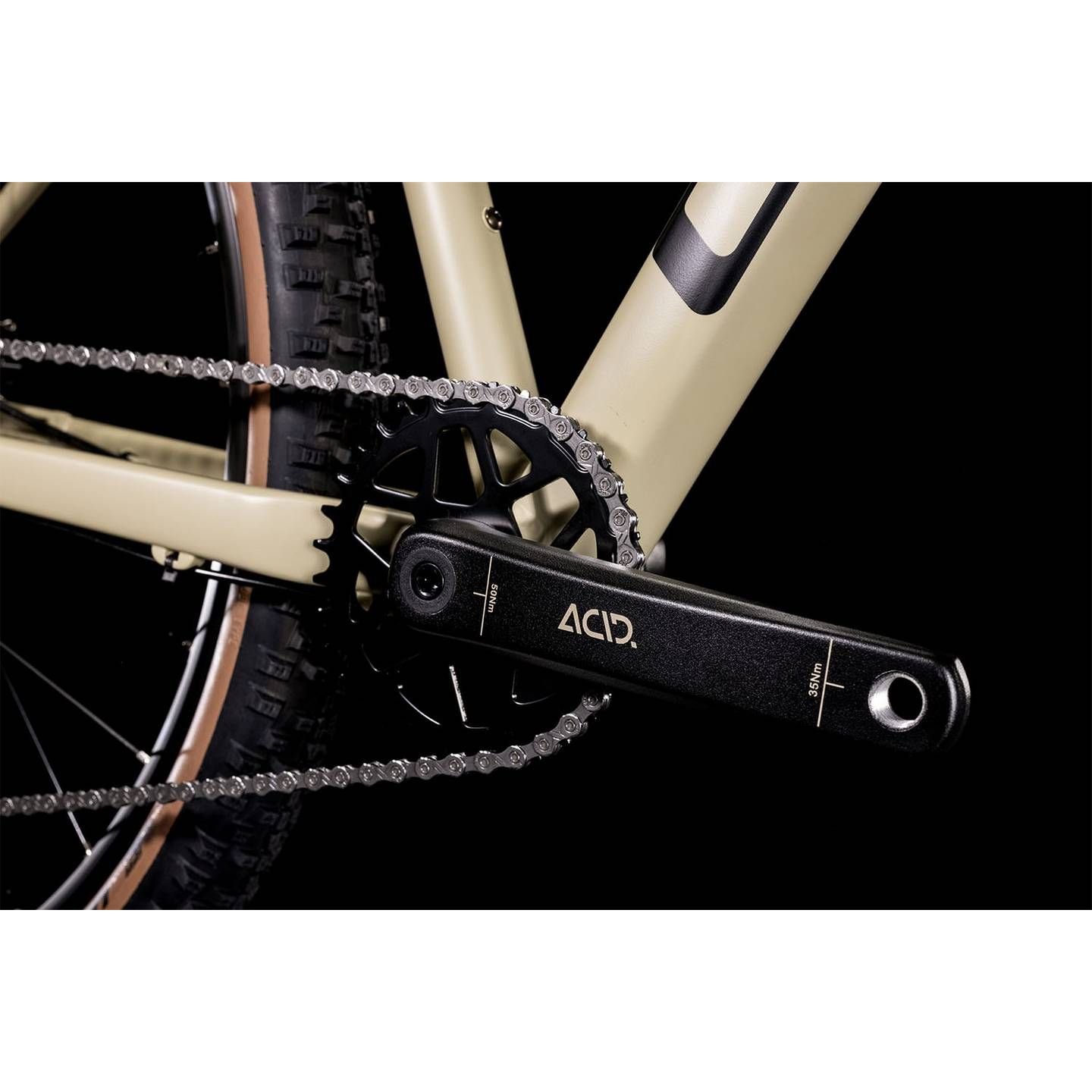

• CRANKSET: ACID MTB Alloy 32T
• CASSETTE: Sunrace CSM52, 11-46T
• CHAIN: KMC X10
• FRONT HUB: Shimano HB-TX505, QR, Centerlock
• REAR HUB: Shimano FH-TX505, QR, Centerlock
• RIMS: CUBE ZX20, 32H, Disc
• TYRES: Schwalbe Smart Sam, Active, 2.25
• STEM: CUBE Performance Stem Pro, 31.8mm
• HANDLEBAR: CUBE Rise Trail Bar, 680mm
• GRIPS: ACID React
• SEAT POST: CUBE Performance Post, 27.2mm
• SEATCLAMP: CUBE Varioclose, 31.8mm
• SADDLE: Natural Fit Venec Lite
• HEADSET: CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
• PEDALS: CUBE PP MTB
• WEIGHT: 13,9 kg
