About Product

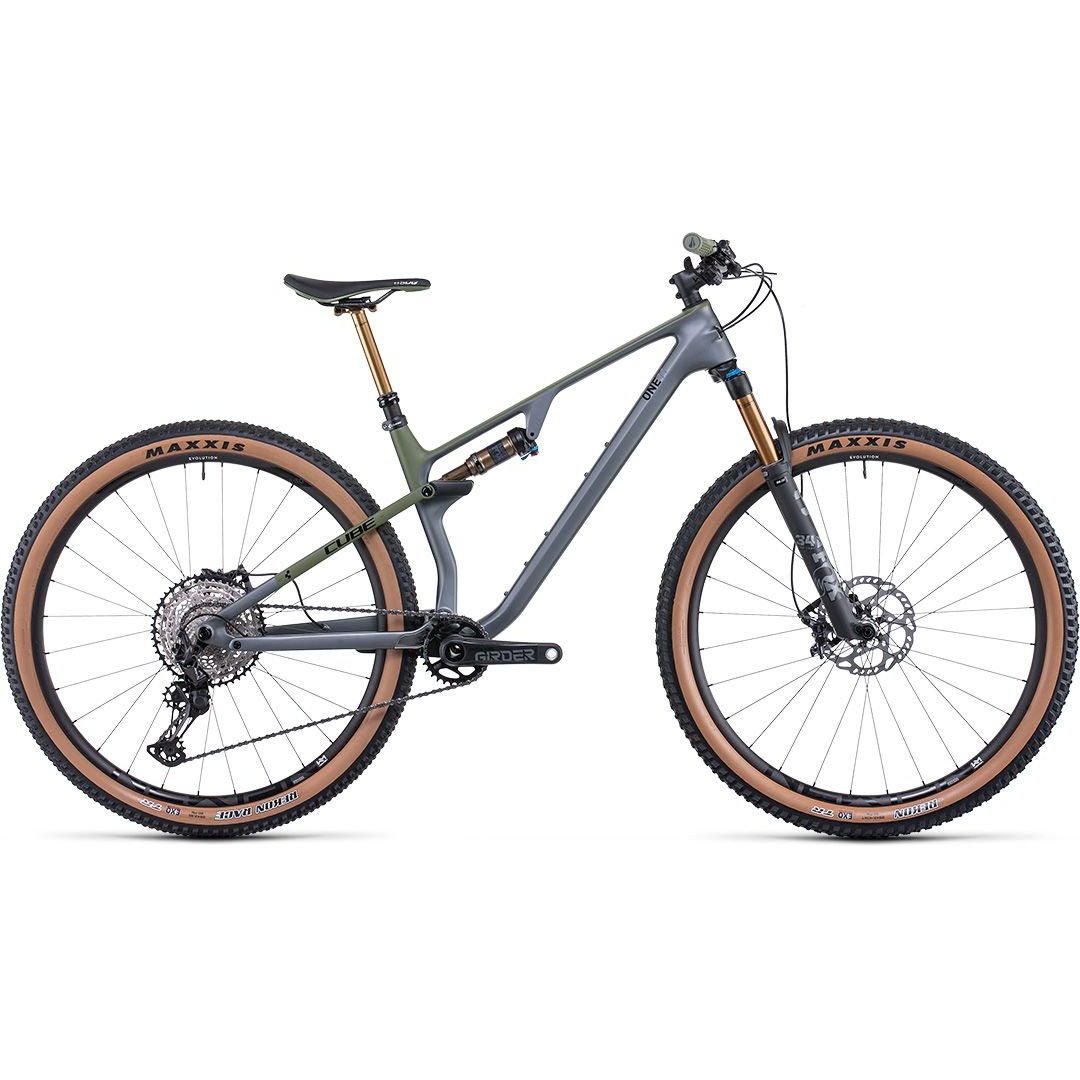

There's no better way to straighten corners, flatten roots and rocks and come out on top. The AMS ONE11 C:68X TM 29's refined carbon chassis is just the start. With 120mm of Fox 34 Float SC Factory travel up front and 110mm of Fox Float DPS Factory at the rear, you're in full control. Newmen Evolution wheels wrapped in Maxxis Rekon 2.4in and Rekon Race 2.35in Kevlar tyres keep the rubber side down. Shimano's XT 1x12 transmission delivers the goods via a super lightweight, stiff Praxis Girder Carbon crank. And Shimano XT hydraulic discs bring it all to a stop - but only when you're done shredding.

Features

• When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X carbon layup.
• With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g.
• Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros AngleSet insert to allow fine-tuning of the head angle.
• 110mm of rear-wheel travel and 120mm up front - combined with the agility of a super-responsive frame - is a potent combination for dissecting even the trickiest sections of trail.
• Raise your game. Ride AMS ONE11 C:68X.

Specification

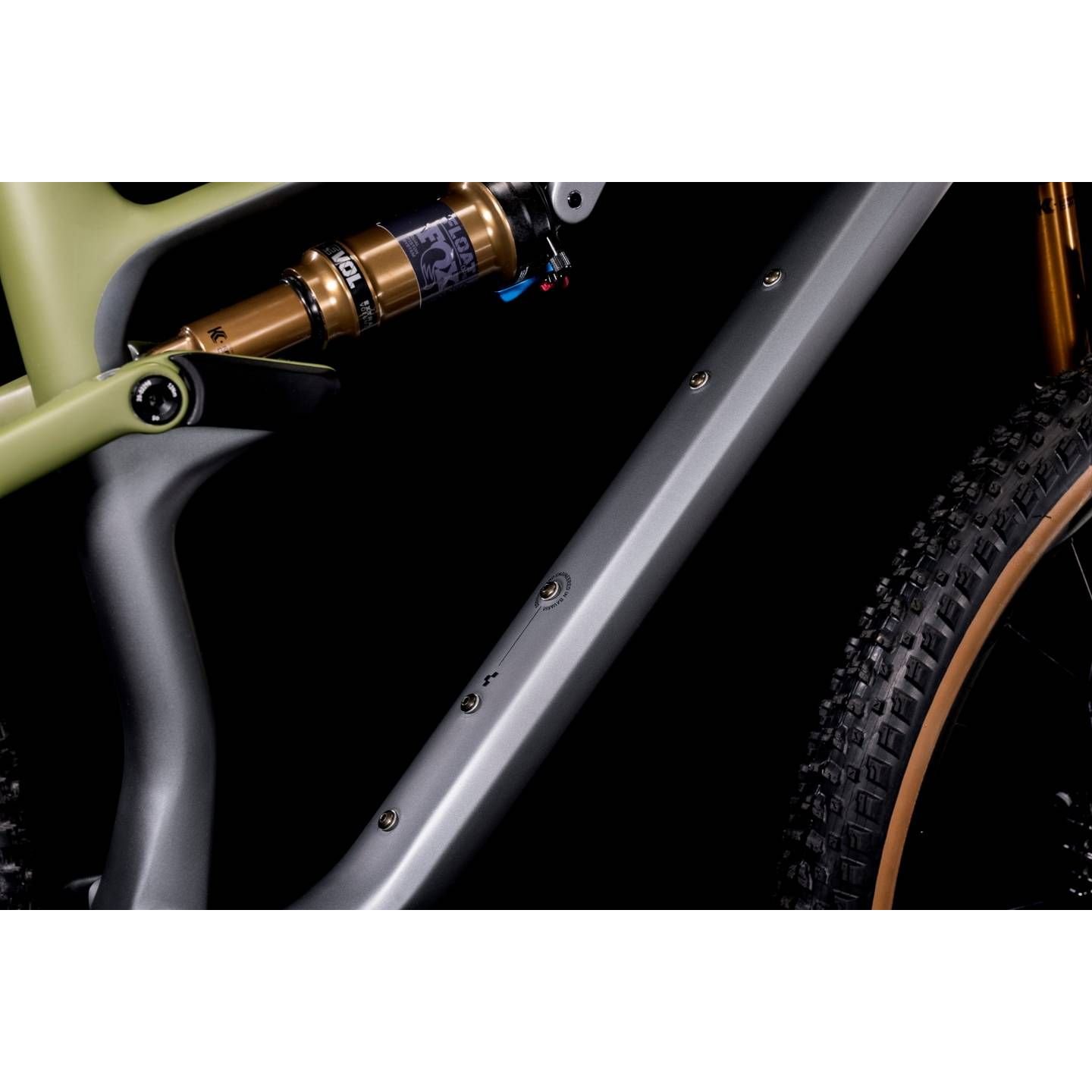

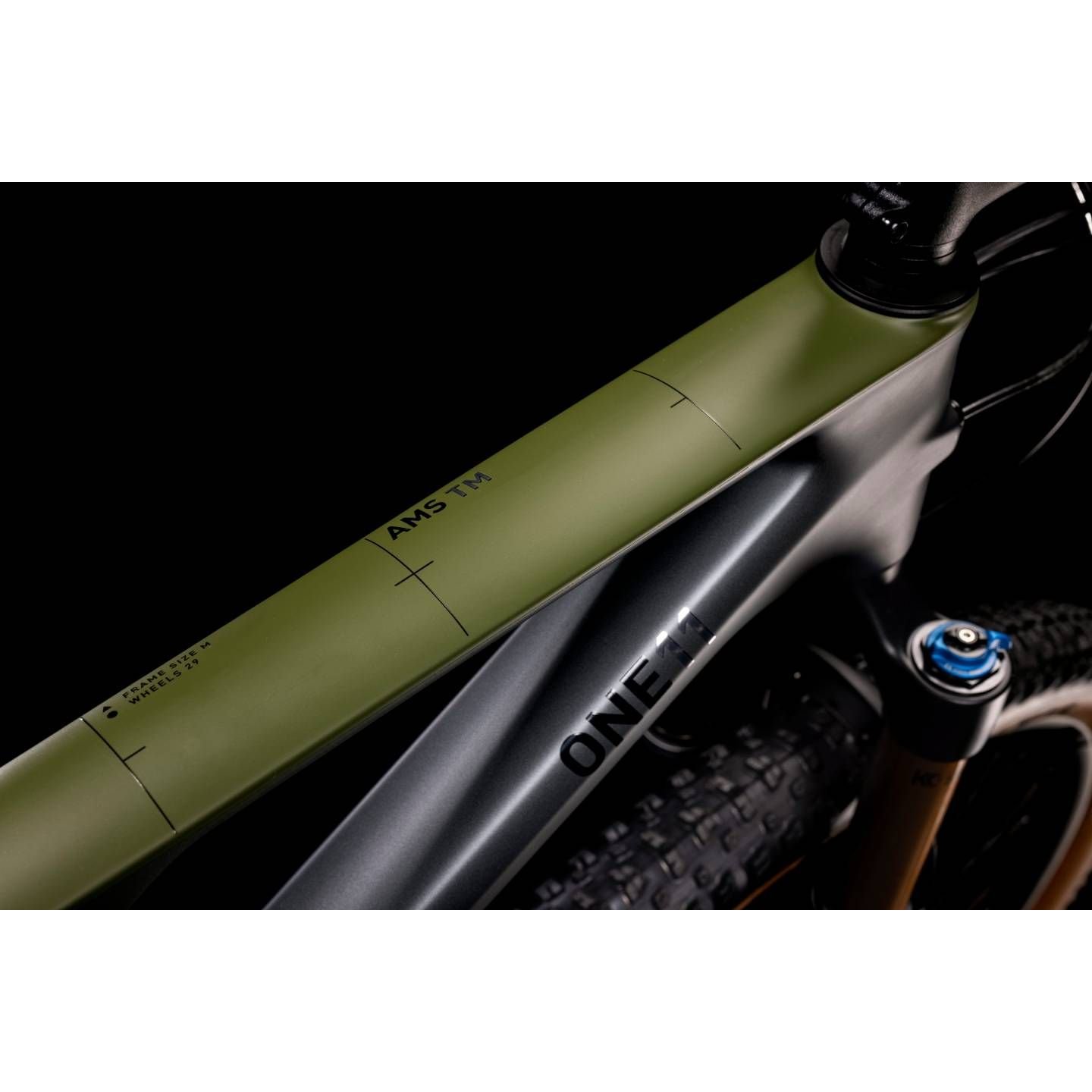

• FRAME: C:68X Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
• SIZE: 29: S, M, L, XL

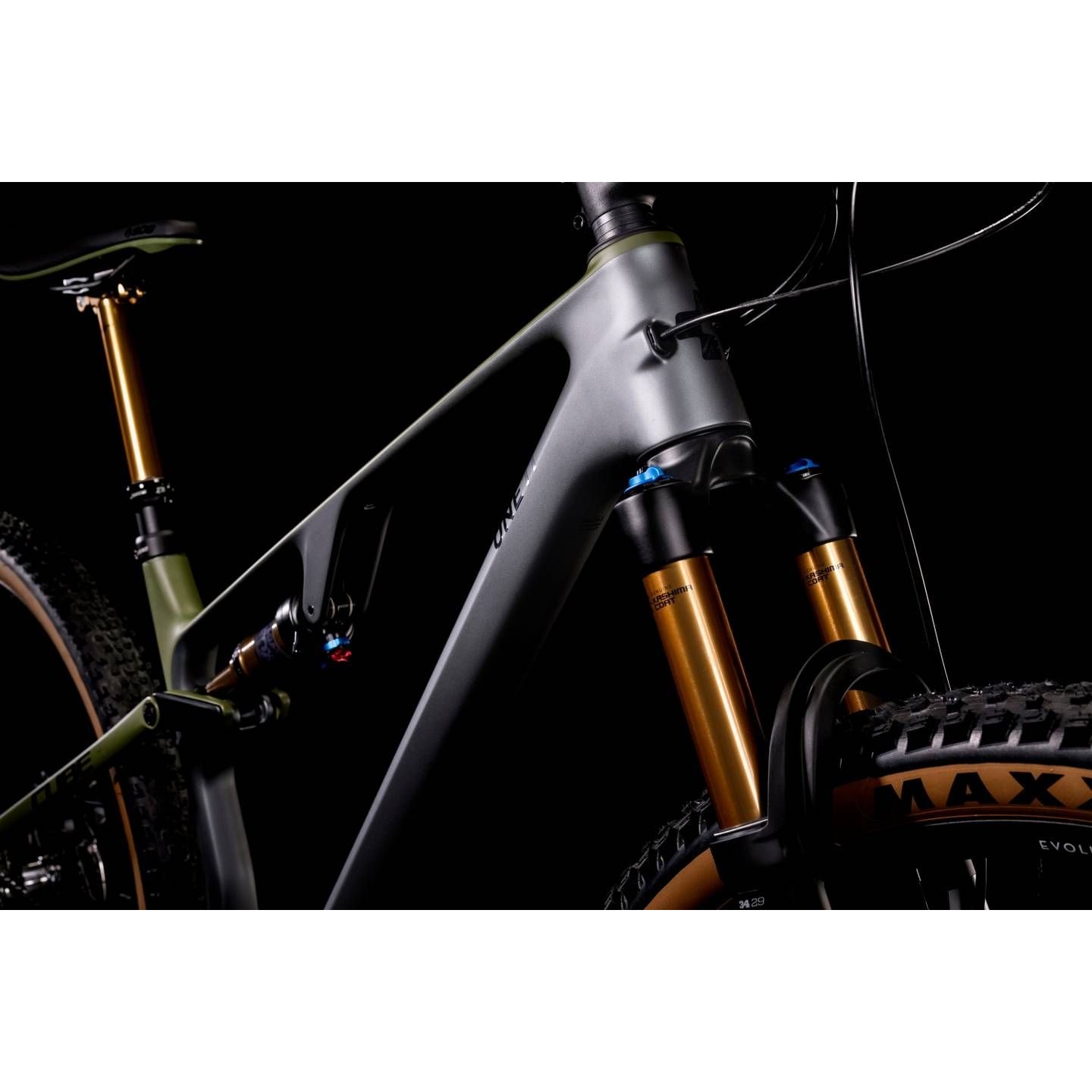

• FORK: Fox 34 SC Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15x110mm, 120mm, Kashima Coated

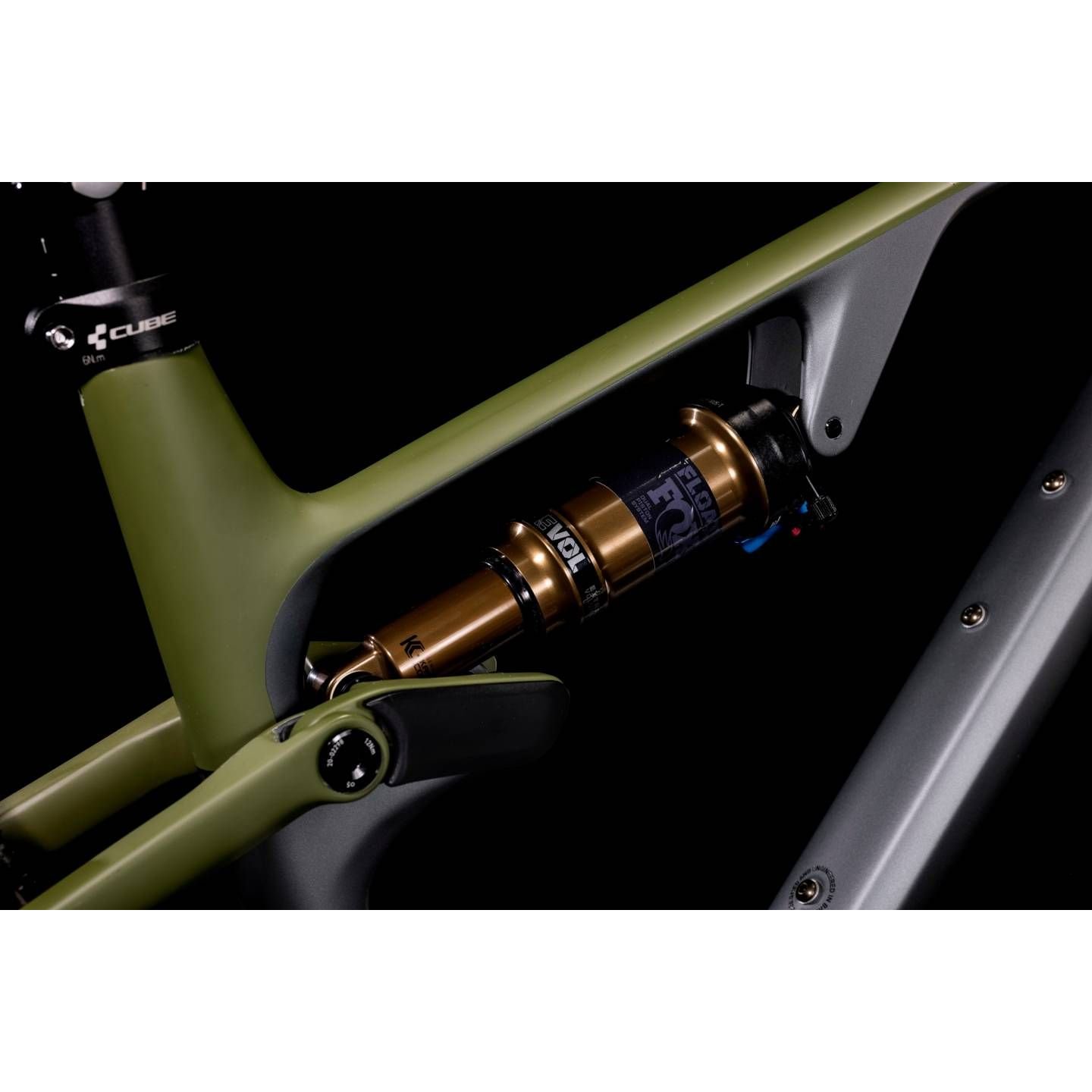

• SHOCK: Fox Float DPS Factory, 190x42.5mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
• SHOCK HARDWARE: Front: 26x8mm, Rear: 30x8mm
• BRAKE SYSTEM: Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
• REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
• SHIFTERS: Shimano XT SL-M8100-IR, Direct Attach

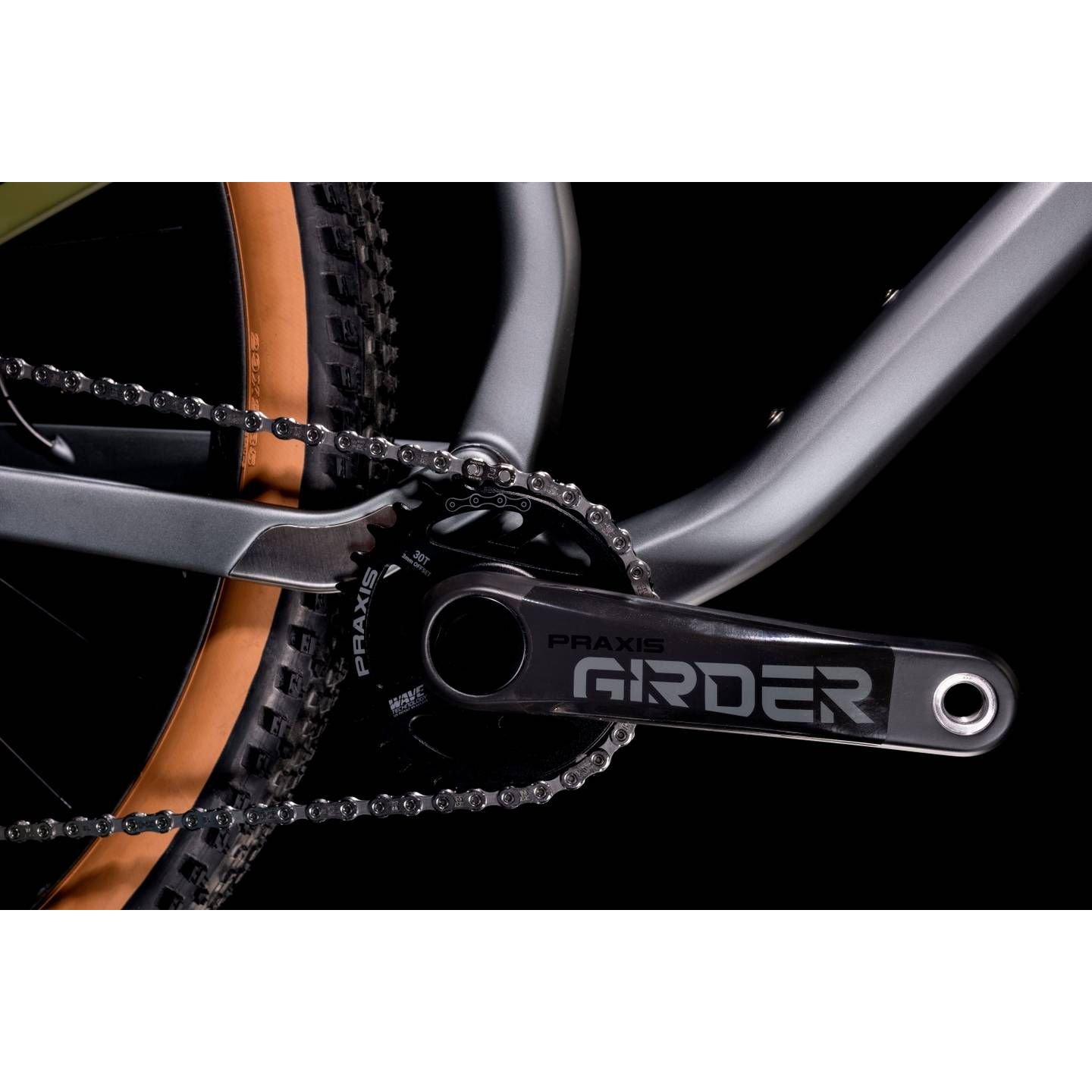

• CRANKSET: Praxis Girder Carbon, Boost, 30T, sealed Enduro™ Bearings, 170mm
• CASSETTE: Shimano SLX CS-M7100, 10-51T
• CHAIN: Shimano CN-M6100

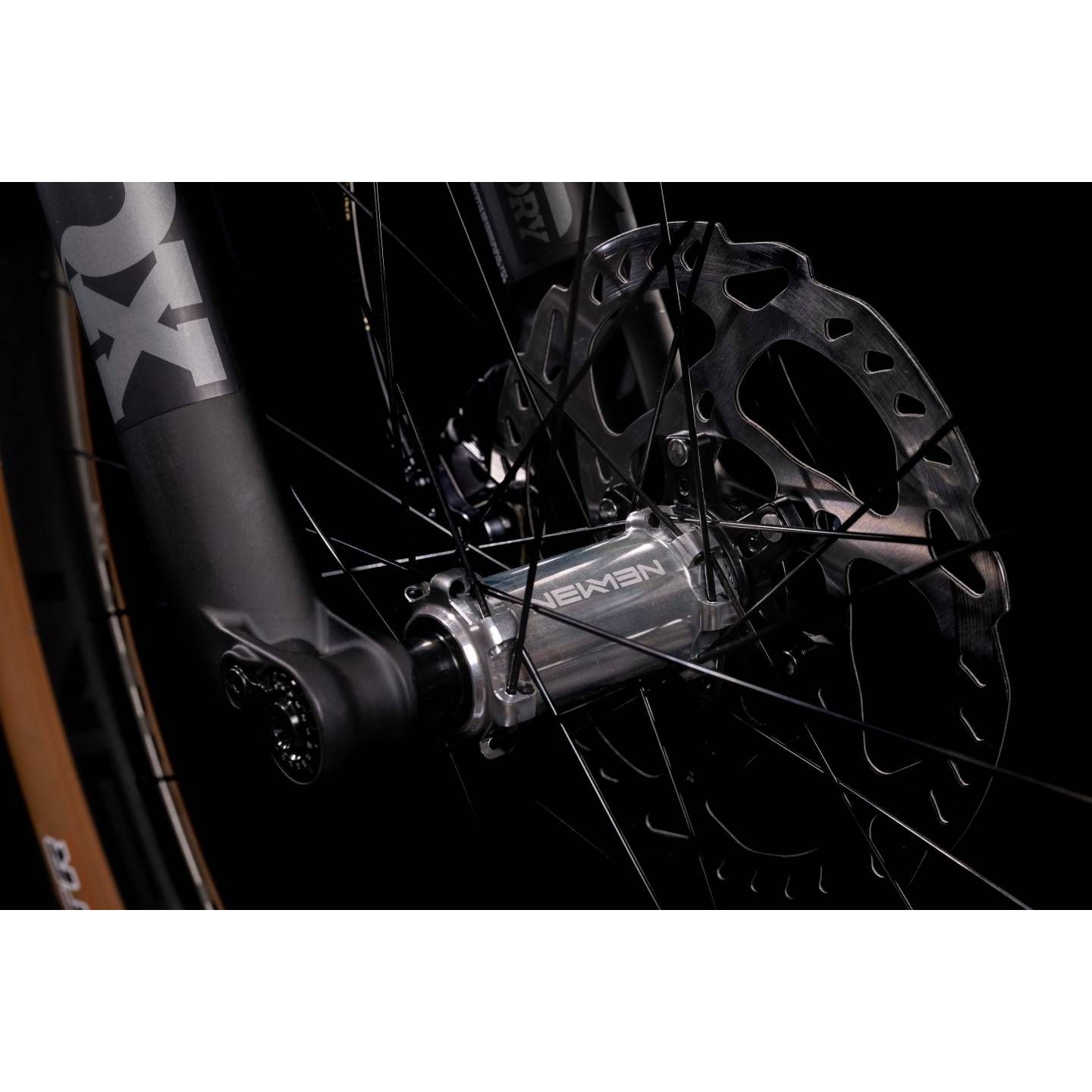

• WHEELSET: Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• FRONT TIRE: Maxxis Rekon, EXO, Tubeless Ready, 2.4
• REAR TIRE: Maxxis Rekon Race, EXO, Tubeless Ready, 2.35
• STEM: Newmen Evolution SL 318.4, 31.8mm
• HANDLEBAR: Newmen Evolution 318.20, 760mm
• GRIPS: SDG Thrice

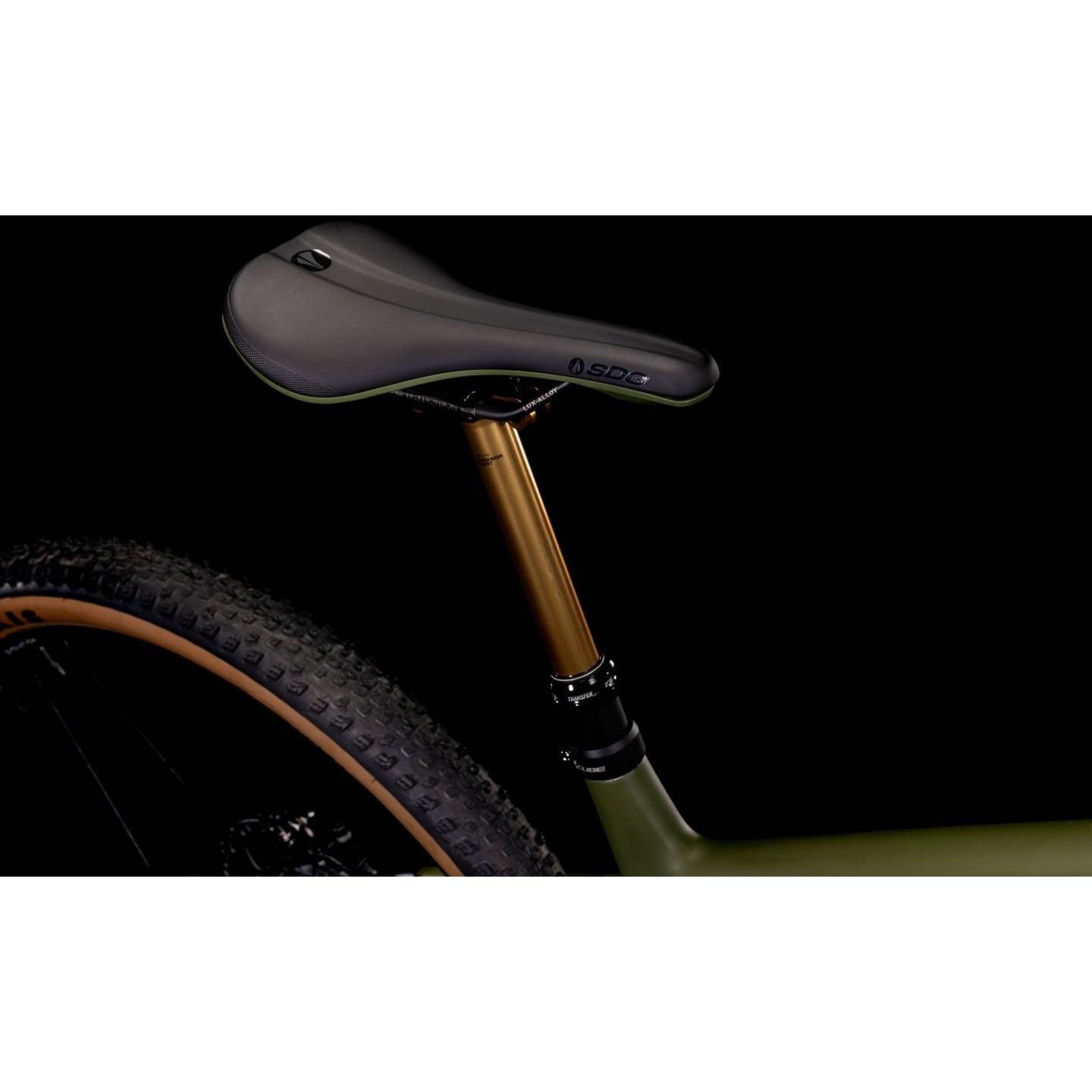

• SEAT POST: Fox Transfer Factory 30.9mm, Kashima Coated, (S: 125mm, M/L/XL: 150mm)
• SEATCLAMP: CUBE Screwlock, 34.9mm
• SADDLE: SDG Bel Air V3 Lux Alloy
• HEADSET: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
• WEIGHT: 11,5 kg
