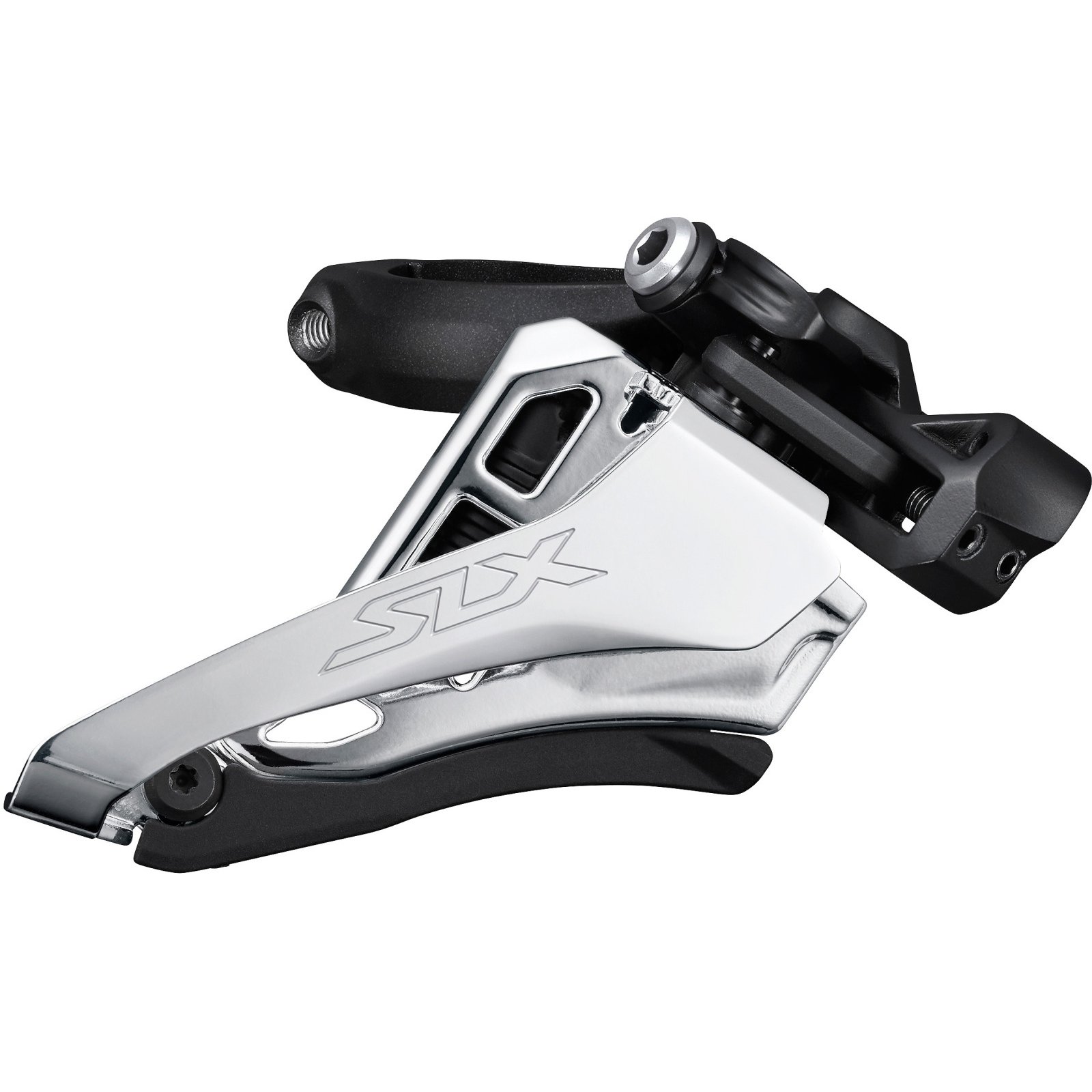

About Product

SLX is ready to go wherever and whenever you want, whether it’s an all-day epic, the local cross country race, or a post-work ride with your buddies. It won’t let you down.

Features:

• Increased traction range and no chain rub for long travel bikes
• One spec for 48.8 mm & 51.8 mm chainline
• Extra wide range with front double 36-26T
• Available in D, E, and M-type mounts
  *M type mount requires adapter (ø34.9 mm)
• Compatible with 2.3-inch tire on wider rims
• Maintain focus and fun on rough, uneven terrain.
• Wide frame mounting compatibility
• Greater tire clearance
• Greater compatibility

Specifications:

• Model Number: FD-M7100-M
• Series: SLX_M7100
• Remarks * S-size adapter is available in OTC package only. Chainline 48.8 mm, 51.8 mm compatible
• Action: SIDE SWING
• Angled clamp band design
• Angled stroke adjust bolt
• Cable Route Type: Front-Pull
• Chain line (mm) 48.8 (142 mm O.L.D.), 51.8 (148 mm O.L.D.)
• Chain stay angle: 66-69
• Compatible chain: HG 12-speed
• Link bushings: 6
• Mount_E-type with BB Plate
• Mount Clamp Band: 31.8 mm, 34.9 mm, E-type with BB Plate
• Speeds Front: 2
• Speeds Rear: 12
• Top gear teeth: 36-38T
• Total capacity: 10T
