About Product

SHIMANO DEORE XT is the original mountain bike groupset trusted by generations of mountain bikers around the world. Whatever the trail, whatever you ride,
XT is your solution for mountain biking today. Reliable shifting. Superior braking.
Intuitive maintenance. XT is the high performance workhorse you can count on.

Features:

• Quicker Piston retraction
• Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M8000)
• Four Piston
• Banjo type connection and inside hose routing
• Superior modulation gives you greater control
• High braking power instills greater downhill confidence and control
• Quick and easy assembly

Specifications:

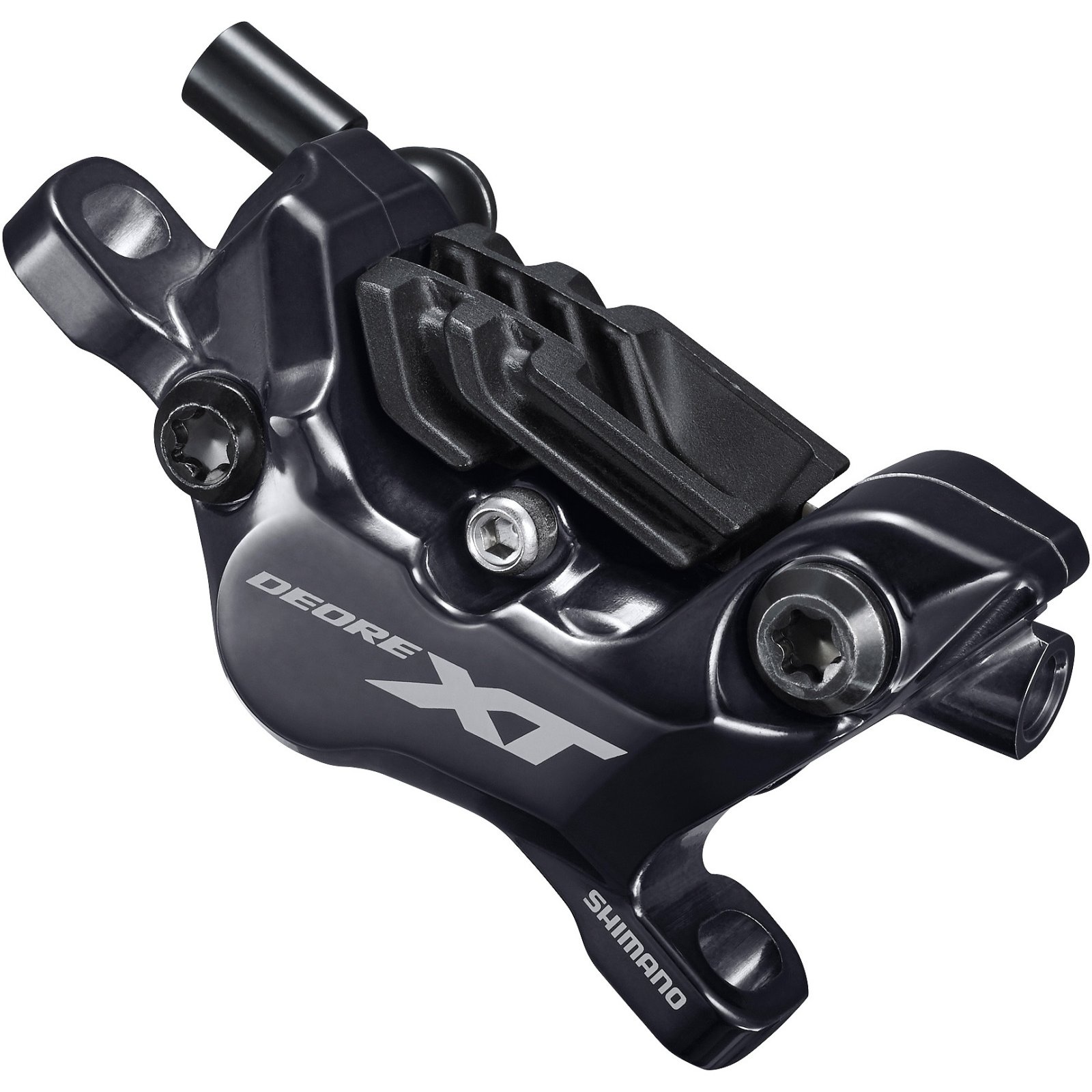

• Model Number: BR-M8120
• Series: SHIMANO_DEORE_XT_M8100
• Brake hose: SM-BH90-SBM
• Brake Type: Hydraulic disc brake
• Caliper fixing bolt: Anti loosen method Snap ring
• Caliper fixing bolt: Tool size 5 mm
• Hose joint: Banjo
• J-Kit spec (for OEM)
• Mount type (available for IS mount with mount adapter): Post-type
• Oil: SHIMANO Mineral
• Pad Option: D03S Resin (w/o fin), D02S Metal (w/o fin)
• Pad Standard: N03A Resin (w/ fin), N04C Metal (w/ fin)
• Pad mount: Pad axle
• Piston: 4
• Recommended brake rotor: RT-MT800
• Ice technology pad compatible caliper
